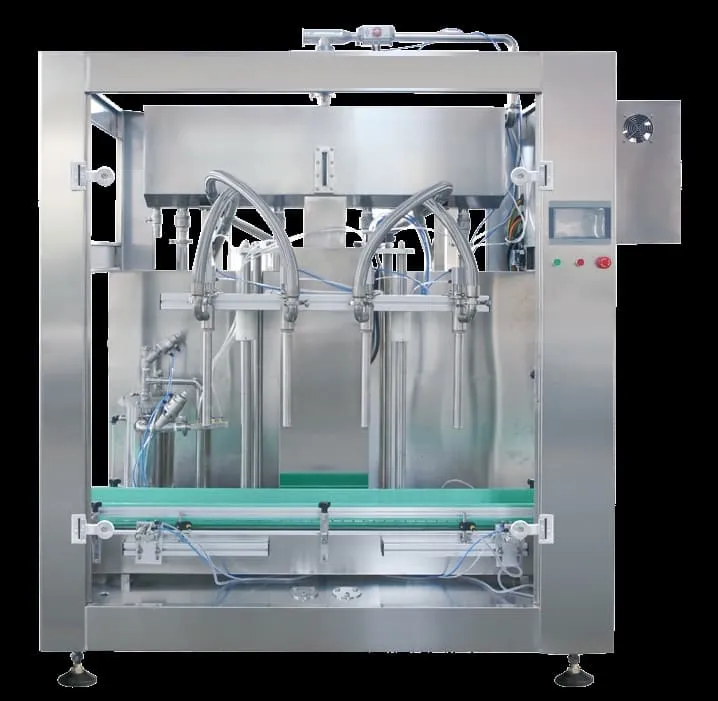

GZB Series Linear Metering Pump Filling Machine
Built for Easy-Foaming, Viscous & Particle-Containing Liquids. Stable Metering. Hygienic Contact.
Wide Liquid Compatibility: Especially suitable for easy-foaming, high-viscosity, and particle-containing materials.
Material-friendly filling: Helps preserve the original properties of the product during filling without unwanted physical or chemical change.
Hygienic liquid contact: Stainless steel contact parts and food-grade seals are ideal for edible oil filling applications.
Built for practical production: Direct water washing, high-temperature and high-pressure resistance, low wear, and no leakage.
Practical Linear Metering Pump Filling Machine Performance
The GZB Series Linear Metering Pump Filling Machine is built for manufacturers who need reliable filling performance for more challenging liquid products. It is especially suitable for liquids that are easy to foam, highly viscous, or contain particles, while helping the material keep its original quality during filling. For edible oil, liquid fertilizer, motor oil, and similar viscous liquids, the GZB series combines stable metering, adjustable PLC flow control, compact structure, large flow, and practical daily usability. At MotivaPAC, we support this series with 20+ years of manufacturing experience, advanced CNC machining, 18,000 m² of factory space, 12,000 m² of standardized workshops, and ISO 9001 plus CE-certified production.
Hygienic Product Contact for Edible Oil Filling
For edible oil filling, all product-contact parts use hygienic stainless steel, and the sealing parts use food-grade silica gel for safer and cleaner production.
The Solution: Supports cleaner, more sanitary product contact for edible oil
Optimized for Easy-Foaming, Viscous & Particle-Containing Liquids
Our GZB series is especially suitable for liquids that are easy to foam, highly viscous, or contain particles, while helping filled material keep its original quality during the process.
The Solution: Helps handle harder liquids more steadily while protecting product quality during filling.
Durable, Wash-Down Friendly Construction
The machine can be washed directly with water and withstands high temperature and high pressure, with wear-resistant, leak-free operation.
The Solution: Makes wash-down cleaning easier in demanding production
Streamlined Metering Pump Structure
The metering pump uses a streamlined structure that helps reduce contamination risk during product transfer.
The Solution:Helps keep material transfer cleaner throughout filling.
Stable Daily Production
Our GZB series linear metering pump filling machine is built for practical factory use, combining stable metering performance with convenient control and reliable daily operation.
Stable Product Quality During Filling
The machine is designed so that the filled material can maintain its original quality during the filling process without unwanted physical or chemical reaction.
PLC Flow Adjustment
The GZB series linear metering pump filling machine adopts PLC control, allowing operators to adjust the flow conveniently according to different production requirements.
Low-Noise, Low-Wear Reliability
The metering pump is designed for low wear, low noise, good reliability, long service life, and reduced energy consumption.
Reducing Daily Filling Cos
Every key feature of our GZB series linear metering pump filling machine is designed to support cleaner filling, easier maintenance, and steadier long-term production.
Easier Cleaning
Direct water washing, as well as resistance to high temperature and high pressure, helps simplify routine cleaning and maintenance.
Lower Wear, Longer Service Life
The metering pump is built for low wear, low noise, and reliable long-term use, helping reduce maintenance burden over time.
Efficient Output in a Compact Footprint
With compact dimensions, large flow, fast filling speed, and high accuracy, the GZB series helps manufacturers improve production efficiency while using floor space more effectively.
GZB Series linear metering pump filling machine Technical Specifications
Below are the standard technical parameters for the GZB Series Linear Metering Pump Filling Machine.
| Model | Heads | Capacity (b/h) | Filling Range (ml) | Filling Accuracy | Voltage | Work Pressure (MPa) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| GZB-1 | 1 | 150 | 250 - 20000 | ±1g/500g | 50Hz/60Hz, 3N-380V ±10% | 0.6 - 0.7 | 900 × 720 × 750 |
| GZB-2 | 2 | 300 | 250 - 20000 | ±1g/500g | 50Hz/60Hz, 3N-380V ±10% | 0.6 - 0.7 | 1200 × 1950 × 2200 |
| GZB-6 | 6 | 1000 | 250 - 20000 | ±1g/500g | 50Hz/60Hz, 3N-380V ±10% | 0.6 - 0.7 | 1950 × 1600 × 2200 |
| GZB-8 | 8 | 1200 | 250 - 20000 | ±1g/500g | 50Hz/60Hz, 3N-380V ±10% | 0.6 - 0.7 | 2350 × 1600 × 2200 |
| GZB-16 | 16 | 2400 | 250 - 20000 | ±1g/500g | 50Hz/60Hz, 3N-380V ±10% | 0.6 - 0.7 | 4800 × 1700 × 2200 |
Versatile Applications: What Can It Fill?
One machine for multiple viscous and specialty liquid filling applications.
Food & Edible Oil
• Edible Oil / Olive Oil
• Soy Sauce /Vinegar
• Ketchup / Honey / Pastes
• Enzyme Drinks
Value: Hygienic stainless steel contact parts and food-grade seals support safer edible oil filling.
Daily Chemicals
• Liquid Soap / Body Wash
• Shampoo /Lotion
• Laundry Detergent
• Glass Cleaner
Value: Stable metering suits thicker daily chemical liquids and supports easier wash-down cleaning.
Industrial & Agrochemicals
• Motor Oil / Lubricants
• Liquid Fertilizer
• Veterinary Drugs
• DEF/AdBlue
Value: Large flow, PLC adjustment, and low-wear operation suit thicker industrial liquids.
Flexible Filling Range for Different Needs
Our GZB series linear metering pump filling machine is designed for flexible filling requirements across different output levels and package volumes.
✔︎ Filling range from 250ml to 20000ml
✔︎ Suitable for both lower-output and higher-output production planning
✔︎ Model options from 1 head to 16 heads
✔︎ Compact structure combined with large flow for efficient factory use
Tailored GZB Configuration Planning
At MotivaPAC, we help match the right GZB linear metering pump filling machine configuration to your actual production needs.
For Easy-Foaming, Viscous, or Particle-Containing Liquids
Different liquid characteristics require a suitable filling configuration. The GZB series is designed specifically for these more challenging materials.
For Different Capacity Targets
From GZB-1 to GZB-16, the series offers multiple head configurations for different production capacities.
For Broader Packaging Line Planning
The GZB series can be selected as part of a broader liquid packaging solution according to product type, filling requirement, and factory layout planning.
Compact Design & Easy Integration
The GZB series linear metering pump filling machine combines compact construction with practical production output, making it suitable for factories that value both performance and floor-space efficiency.
- With multiple model sizes available, manufacturers can choose a machine that better fits their output target and available installation space.
Frequently Asked Questions About the GZB Series
Practical answers to common GZB selection and operation questions
The GZB series linear metering pump filling machine is especially suitable for liquids that are easy to foam, highly viscous, or contain particles. It is also suitable for liquid fertilizer, edible oil, motor oil, and other viscous liquids.
Yes. For edible oil filling, all product-contact parts are made of stainless steel materials that meet hygienic standards, and the sealing parts use food-grade silica gel.
Yes. The machine can be washed directly with water and is resistant to high temperature and high pressure, which helps simplify cleaning and maintenance.
The GZB series uses PLC control, allowing operators to adjust the flow conveniently according to production requirements.
The streamlined metering pump structure helps avoid contamination to the filled material, while also offering low wear, low noise, good reliability, long service life, and reduced energy consumption.
The standard filling range is 250ml to 20000ml, making the machine suitable for a wide range of production requirements.
