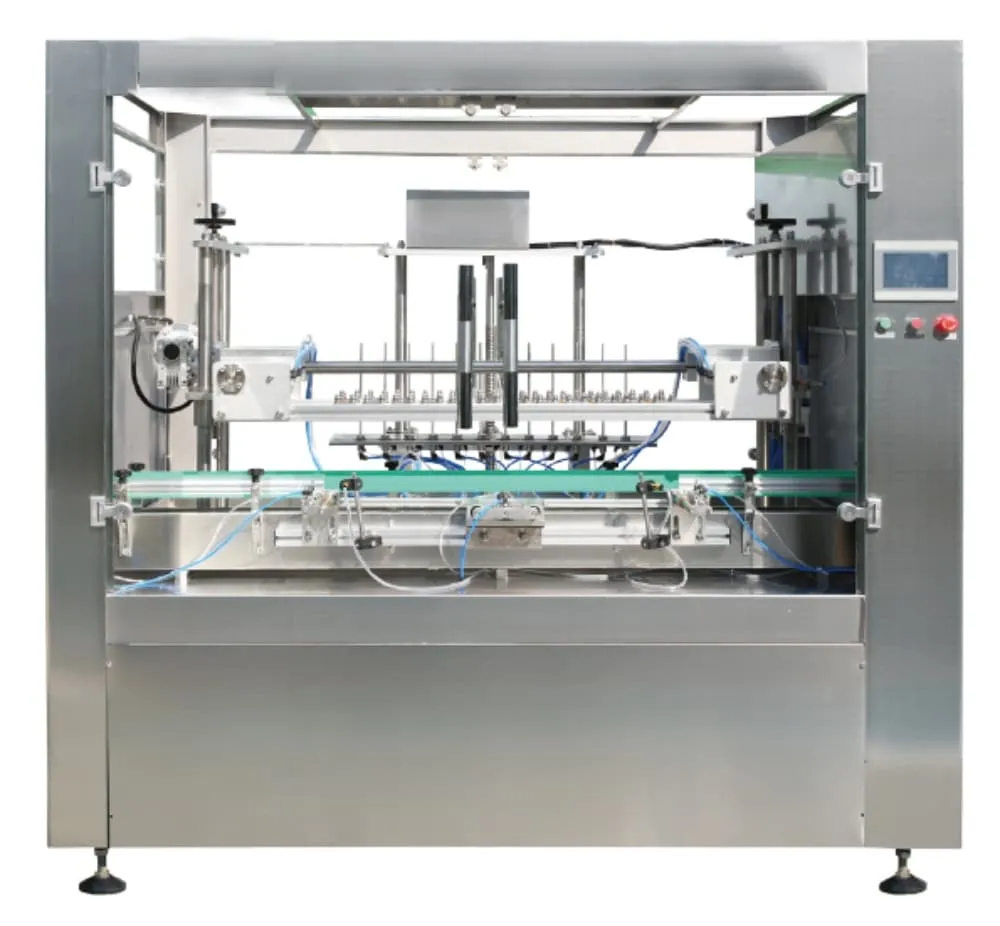

Linear Bottle Washer for Glass and PET Bottles
Automatic bottle gripping, inversion, rinsing, draining, and reset before filling.
The ZQSP Series is built for rinsing glass bottles and PET bottles before filling. The listed models include ZQSP-8, ZQSP-10, and ZQSP-12, with capacities of 1,000 b/h, 1,300 b/h, and 1,500 b/h.
Capacity
1,000-1,500 b/h
Models
Power
Control
- Suitable for PET bottles and glass bottles
- Bottle gripping, inversion, rinsing, draining, reset, and bottle discharge in one process
- PLC control with photoelectric system and color touch screen
- Continuous tracking rinsing with strong impact force and longer rinsing time
- No bottle, no water design for water saving
Linear Bottle Rinsing for Bottle Preparation Before Filling

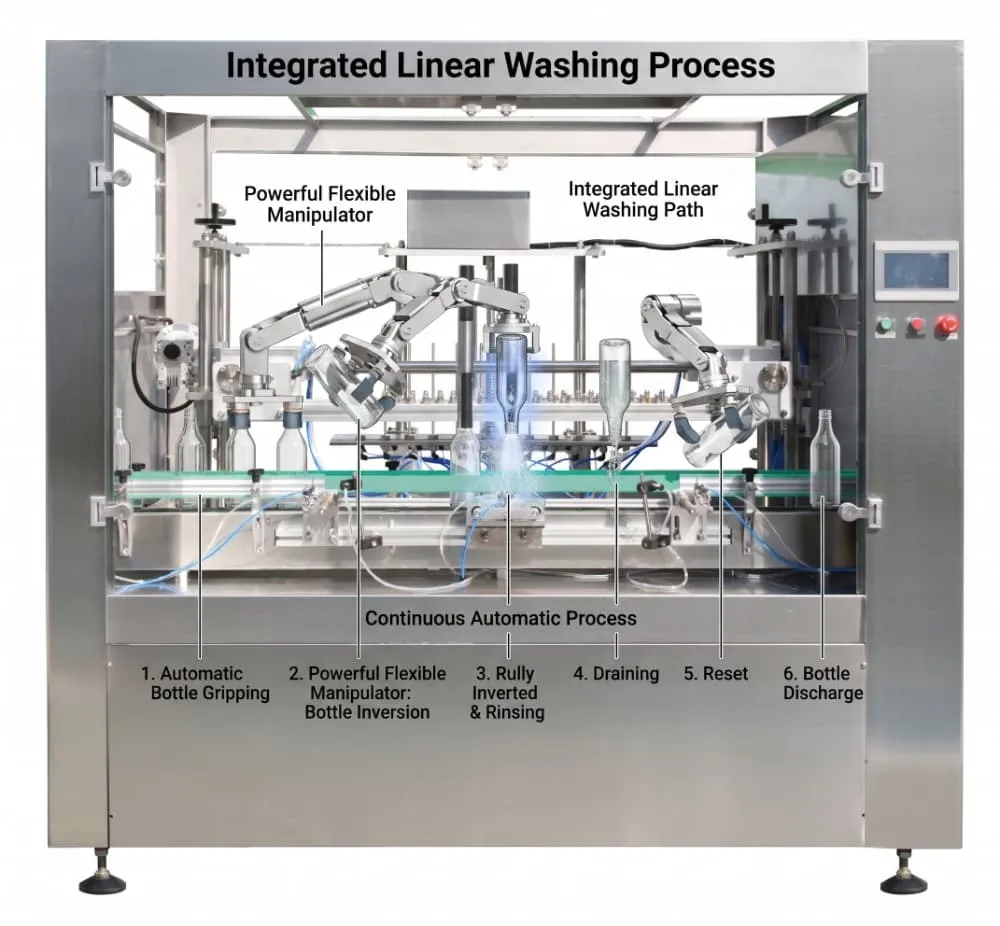

Automatic Bottle Gripping, Inversion, Rinsing, and Reset
The machine uses a powerful flexible manipulator to grip the bottle and complete bottle inversion, rinsing, draining, reset, and bottle discharge as a continuous automatic process.

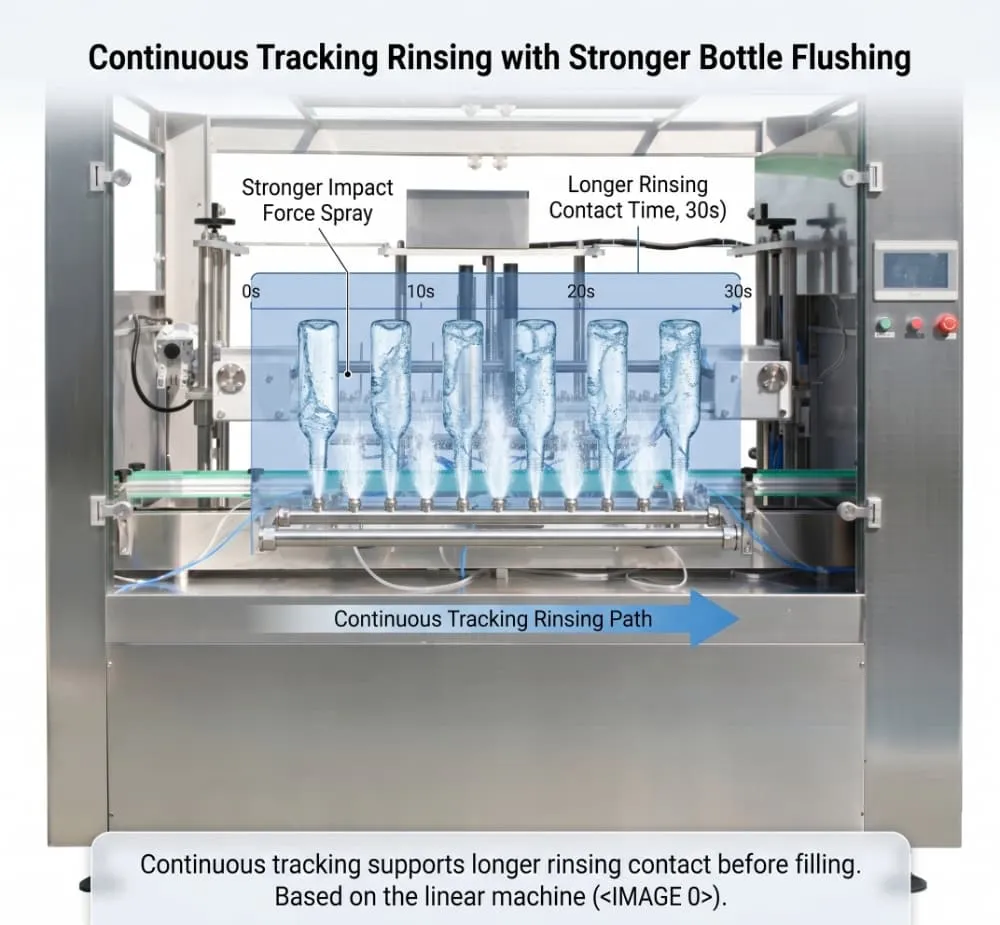

Continuous Tracking Rinsing with Stronger Bottle Flushing
The ZQSP Series continuously follows the bottle during rinsing, with strong impact force, longer rinsing time and stable overall machine operation before filling.

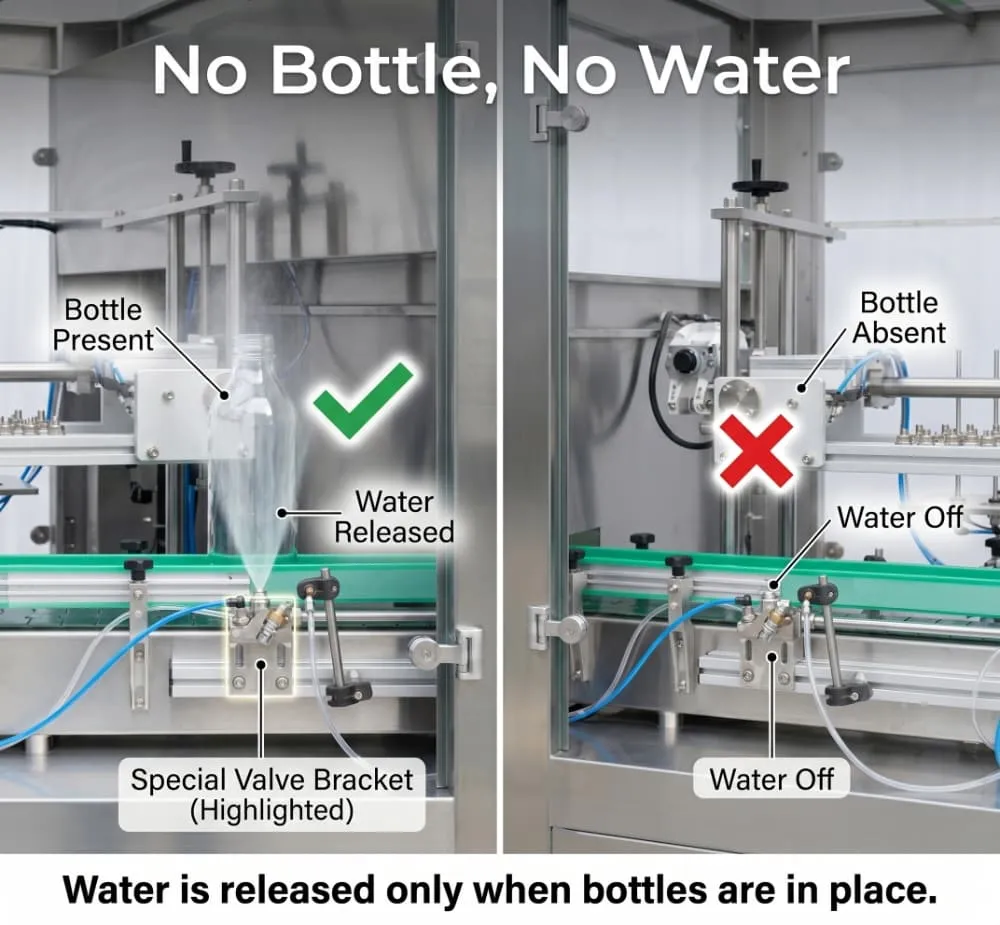

No Bottle, No Water
The machine is equipped with a special valve bracket that supports no bottle, no water operation. This reduces unnecessary water use and keeps rinsing work more controlled during production.

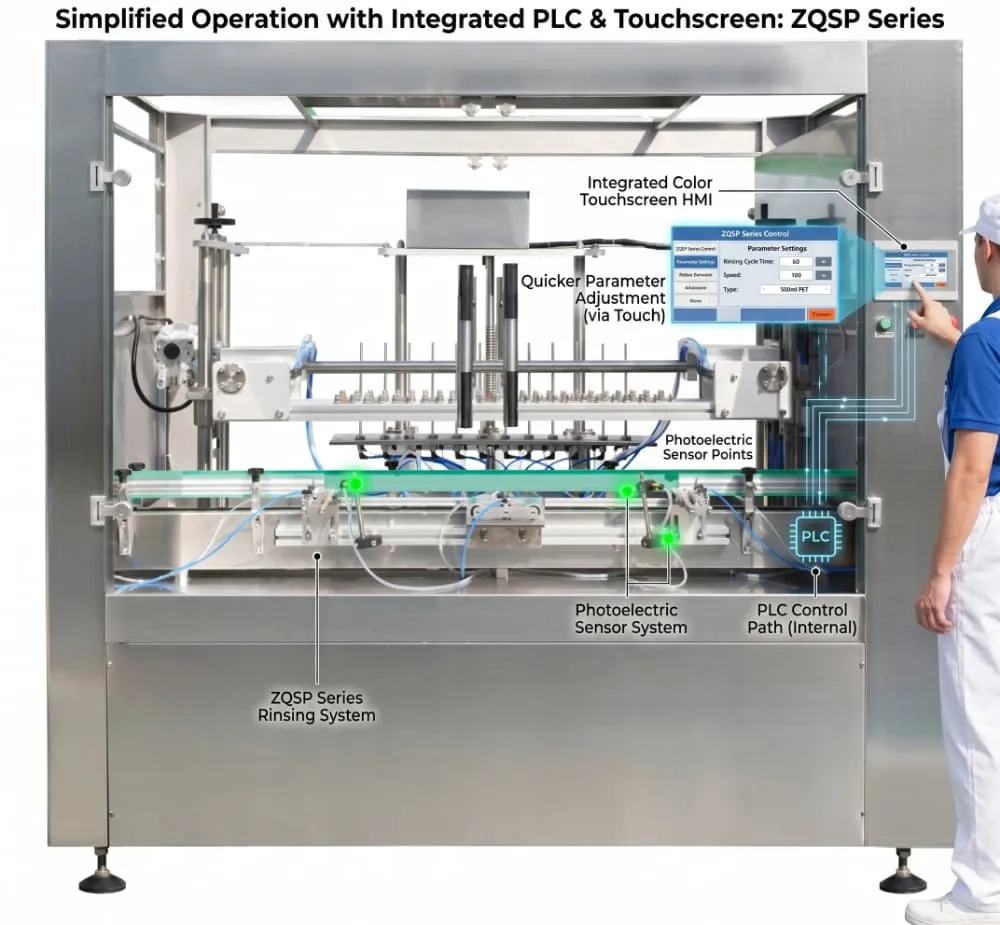

Integrated PLC Control with Touchscreen Operation
The ZQSP Series adopts an integrated structure with PLC control, photoelectric system, and color touch screen. Operation and adjustment stay straightforward for bottle rinsing work before filling.
Practical Advantages for Daily Linear Bottle Washing
01
Fully Automatic Bottle Washing Process
Bottle gripping, inversion, rinsing, draining, reset, and discharge are handled in one automatic process.
02
Stronger Rinsing Action
Continuous bottle tracking and longer rinsing time support stronger bottle flushing before filling.
03
Water-Saving Operation
The special valve bracket ensures no bottle, no water during rinsing.
ZQSP Series Model Options
ZQSP-8
1,000 b/h for lower-output bottle washing work before filling.
ZQSP-10
1,300 b/h for medium-output bottle preparation work before filling.
ZQSP-12
1,500 b/h for higher-output work within the same linear bottle washer family.
ZQSP Series Technical Specifications
| Model | Heads | Capacity (b/h) | Power (kW) | Voltage | Air Pressure (MPa) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| ZQSP-8 | 8 | 1000 | 2.3 | 380V / 50Hz | 0.6 | 800 | 2250 × 1550 × 2300 |
| ZQSP-10 | 10 | 1300 | 2.3 | 380V / 50Hz | 0.6 | 800 | 2250 × 1550 × 2300 |
| ZQSP-12 | 12 | 1500 | 2.3 | 380V / 50Hz | 0.6 | 800 | 2250 × 1550 × 2300 |
Suitable Linear Bottle Washing Applications
Liquor Bottle Preparation
The ZQSP Series suits liquor bottle rinsing before filling.
Wine Bottle Preparation
The ZQSP Series also suits wine bottle rinsing before filling.
Brewing Bottle Preparation
The ZQSP Series also suits brewing-related bottle rinsing before filling.
Mineral Water Bottle Preparation
The ZQSP Series also fits mineral water bottle rinsing before the filling section starts.
Frequently Asked Questions About the ZQSP Series
The ZQSP Series covers 1,000 b/h, 1,300 b/h and 1,500 b/h depending on model.
The machine adopts PLC control, photoelectric system, and a color touch screen.
Bottle material, bottle size, required output, and the upstream and downstream filling line arrangement are the key details for model matching.
Need the Right Linear Bottle Washer for Your Bottling Line?
Send your bottle material, bottle size, target output, and production line details.
ZQSP Series Linear Bottle Washer
Share your bottle details for model matching and bottle washing section planning.
