Liquid Filling Machines & Complete Bottling Lines

From Water & Beverages to Viscous Oils. Precision Filling, Capping, and Labeling for 2,000 – 24,000 BPH.

Build Your Production Line

Identify the missing piece in your facility. Choose a processing stage below to find high-performance equipment tailored to your capacity needs (2,000 – 24,000 BPH).

Liquid Filling

Water, Oil, Viscous & Corrosive

Capping Systems

ROPP, Screw Cap, Crown Cap

Labeling Machines

Shrink Sleeve, BOPP, Sticker

Bottle Rinsing

Rotary & Linear Air/Water Rinse

End-of-Line

Case Packer, Palletizer

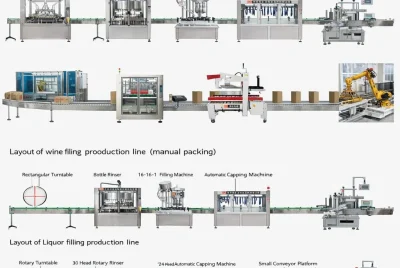

Turnkey Lines

Complete Plant Design (A-Z)

The Complete Packaging Ecosystem: Engineered for Integration

Don’t just buy a machine; build a synchronized production line. From precise filling to final case packing, every unit below is manufactured in our 18,000m² CNC facility to ensure seamless compatibility and identical durability standards.

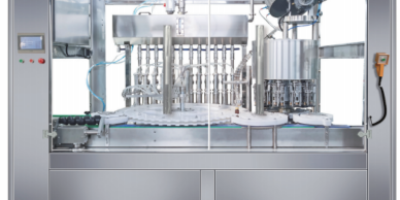

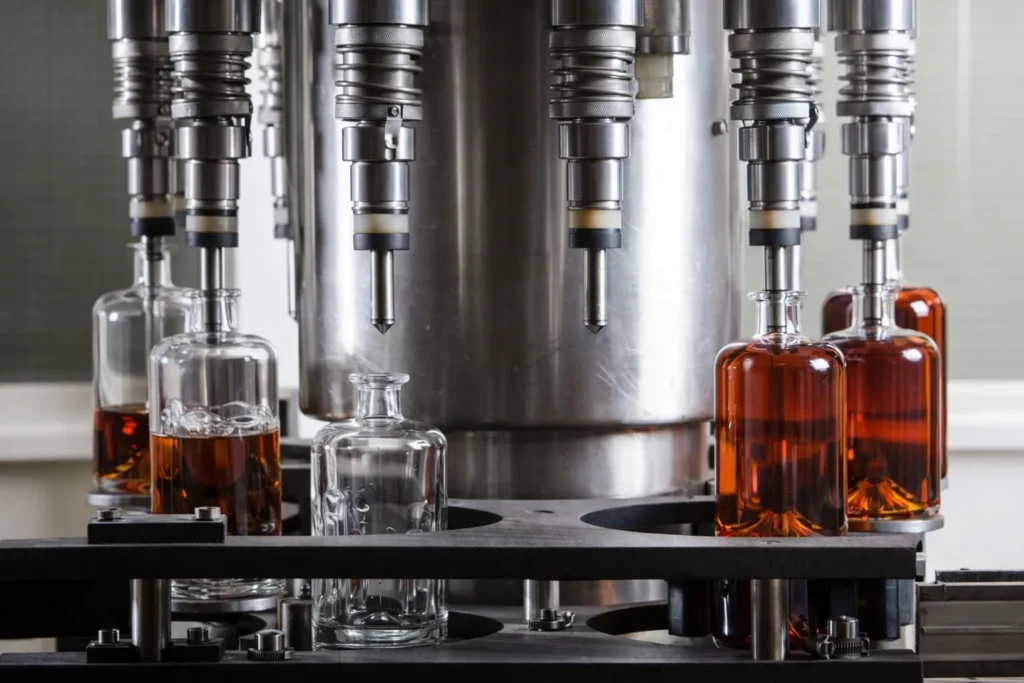

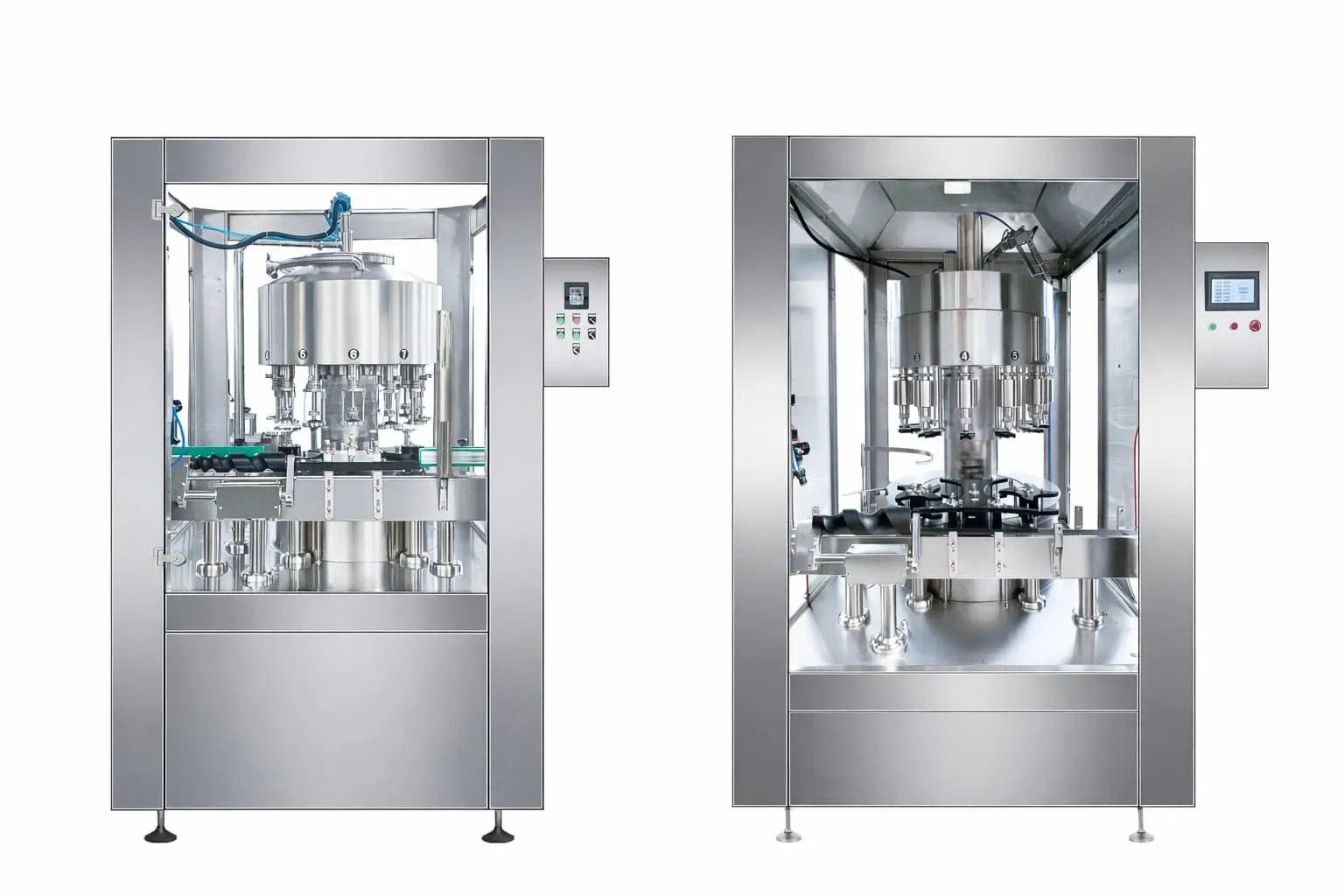

Liquid Filling Machines: Gravity, Piston & Vacuum

Designed for versatility, our systems handle the full viscosity spectrum—from free-flowing water to thick sauces. Available in Rotary Monoblocks (High Speed) and Linear Machines (Flexible) for containers from 100ml to 20L.

"Inconsistent fill levels kill efficiency. Our CNC-machined 316L valves ensure ±1mm precision and zero-drip performance, even for foaming liquids."

💡 Tip: For foaming products like detergent, we use 'Bottom-up Filling' to eliminate bubbles.

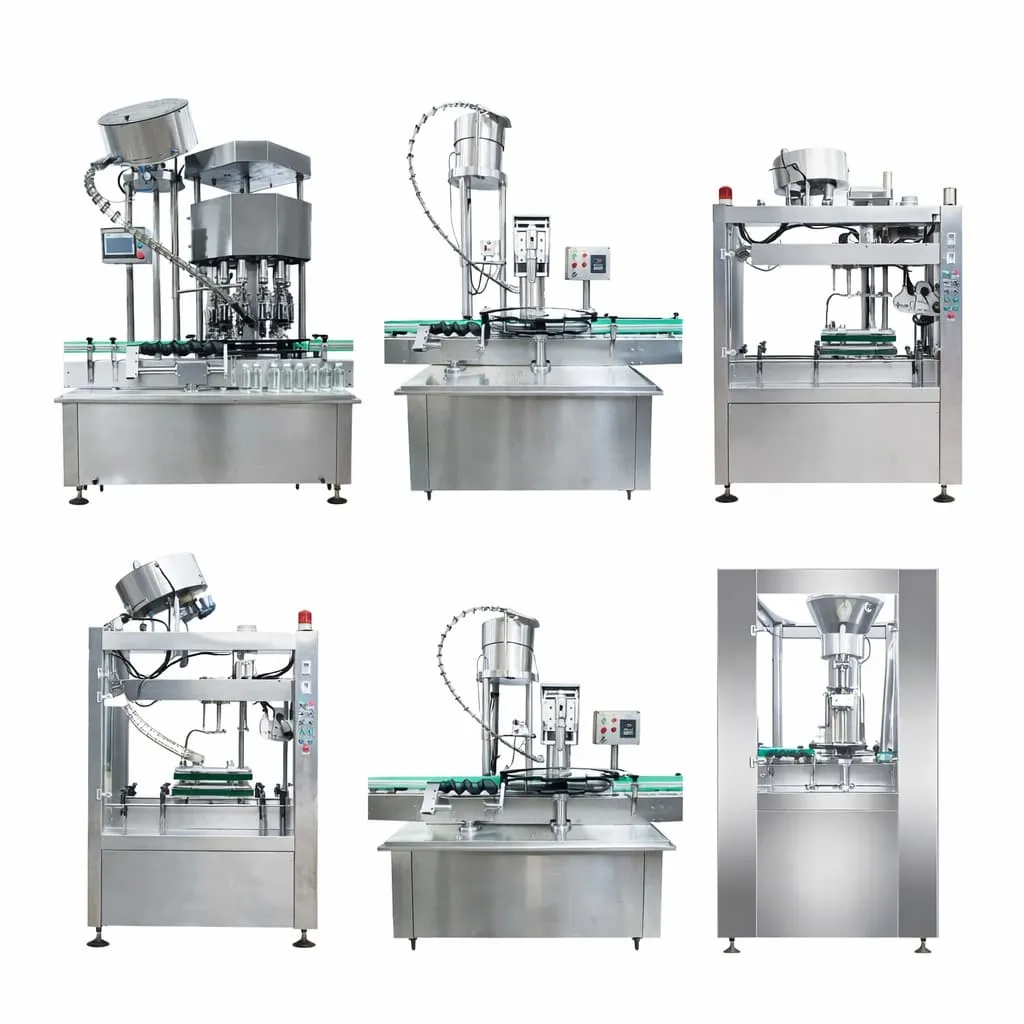

Capping Systems: Rotary & Linear Cappers

Secure every bottle. Our solutions cover Plastic Screw Caps, Aluminum ROPP, Metal Crown Caps, and Press-on Lids. Available as standalone units or integrated monoblocks to match line speeds (2k - 24k BPH).

"A loose cap means leakage; an overtightened cap means damage. Our Magnetic Torque Heads achieve a 99.9% success rate while protecting the bottle finish."

💡 Tip: Frequent changeovers? Our 'Quick-Change Starwheel' cuts setup time to <15 mins.

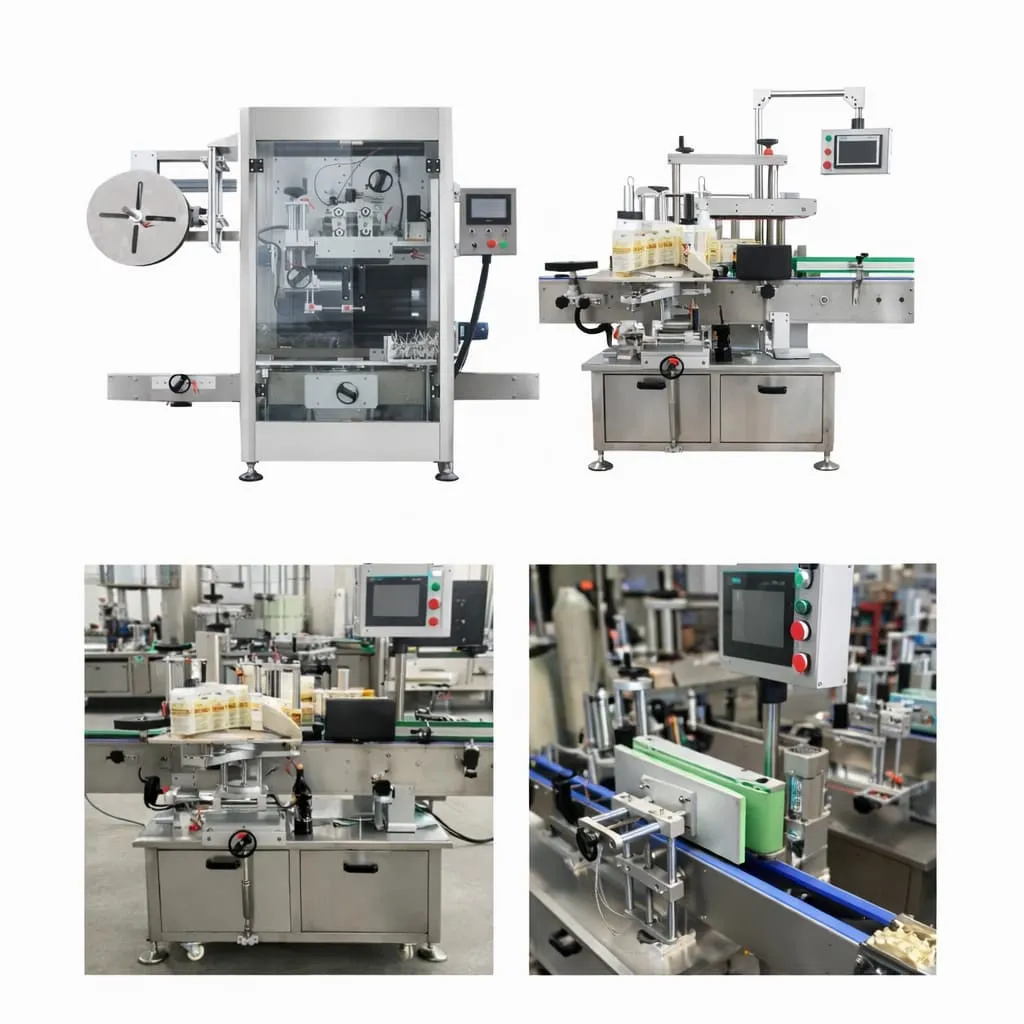

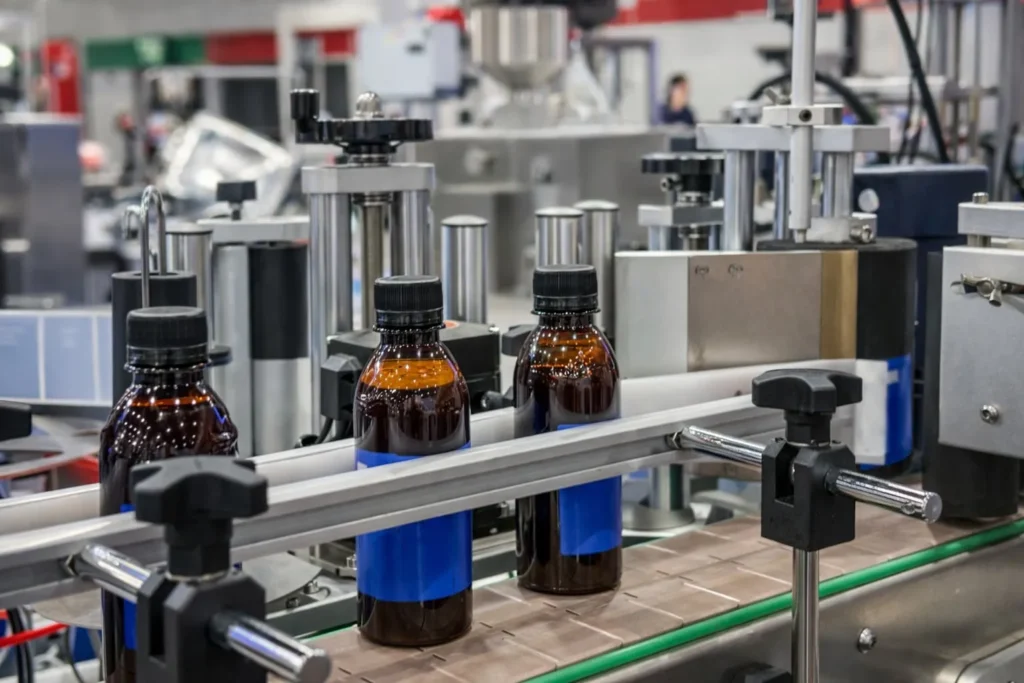

Labeling Machines: Sleeve, Sticker & Glue

The face of your brand. We provide solutions for Shrink Sleeves (360° coverage), Self-Adhesive Stickers, and Hot Melt Glue (OPP) labels for round, square, and flat bottles.

"Wrinkled or skewed labels ruin shelf appeal. Our servo-driven positioning systems ensure ±1mm accuracy and smooth application at any speed."

💡 Tip: For curved or unique bottle shapes, 'Steam Shrink Tunnels' provide the smoothest finish.

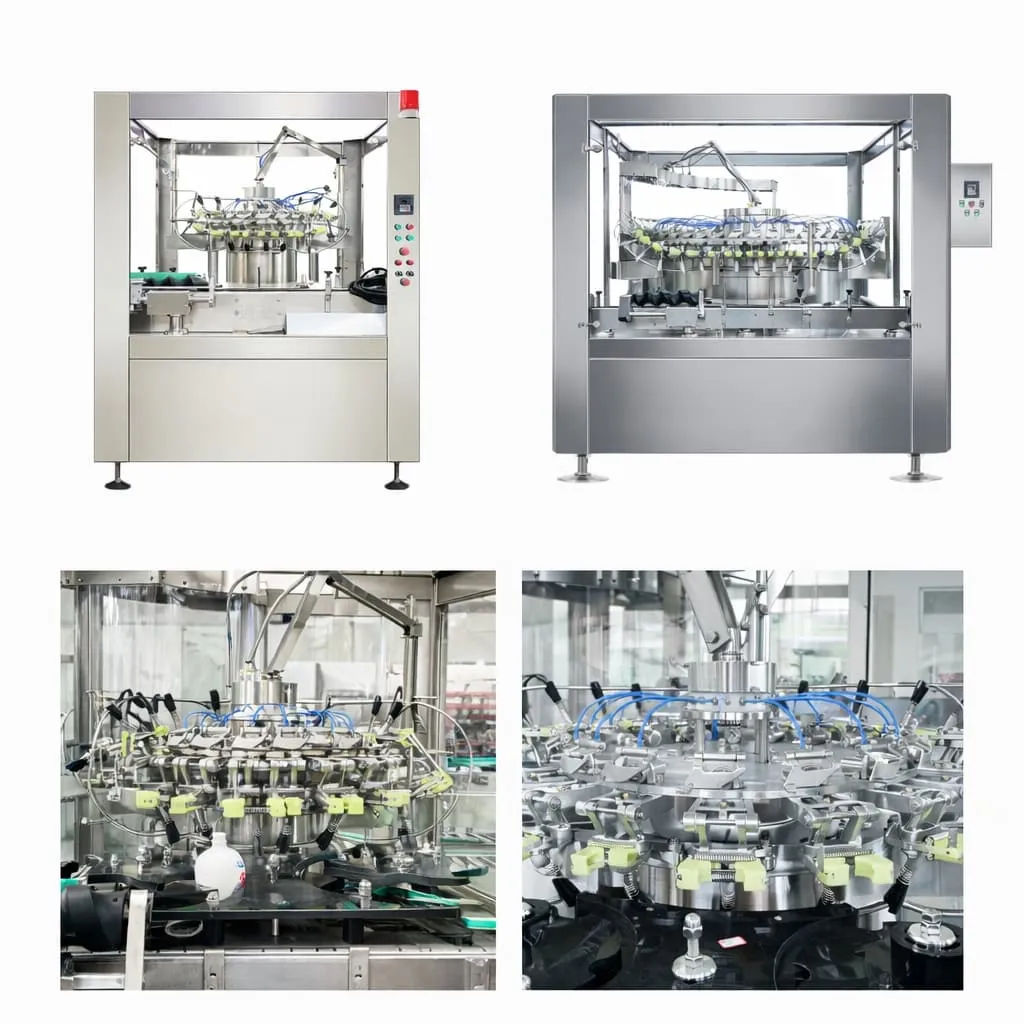

Bottle Rinsing Machines: Air & Water Cleaning

Remove dust and contaminants before filling. Choose Rotary Rinsers for high-speed lines or Linear Air Cleaners for water-sensitive products.

"Food safety starts here. Our 180° Inversion Grippers (food-grade) allow high-pressure jets to clean every corner inside and out."

💡 Tip: Limited water supply? Ask about our 'Recirculating Water System' to save up to 60%.

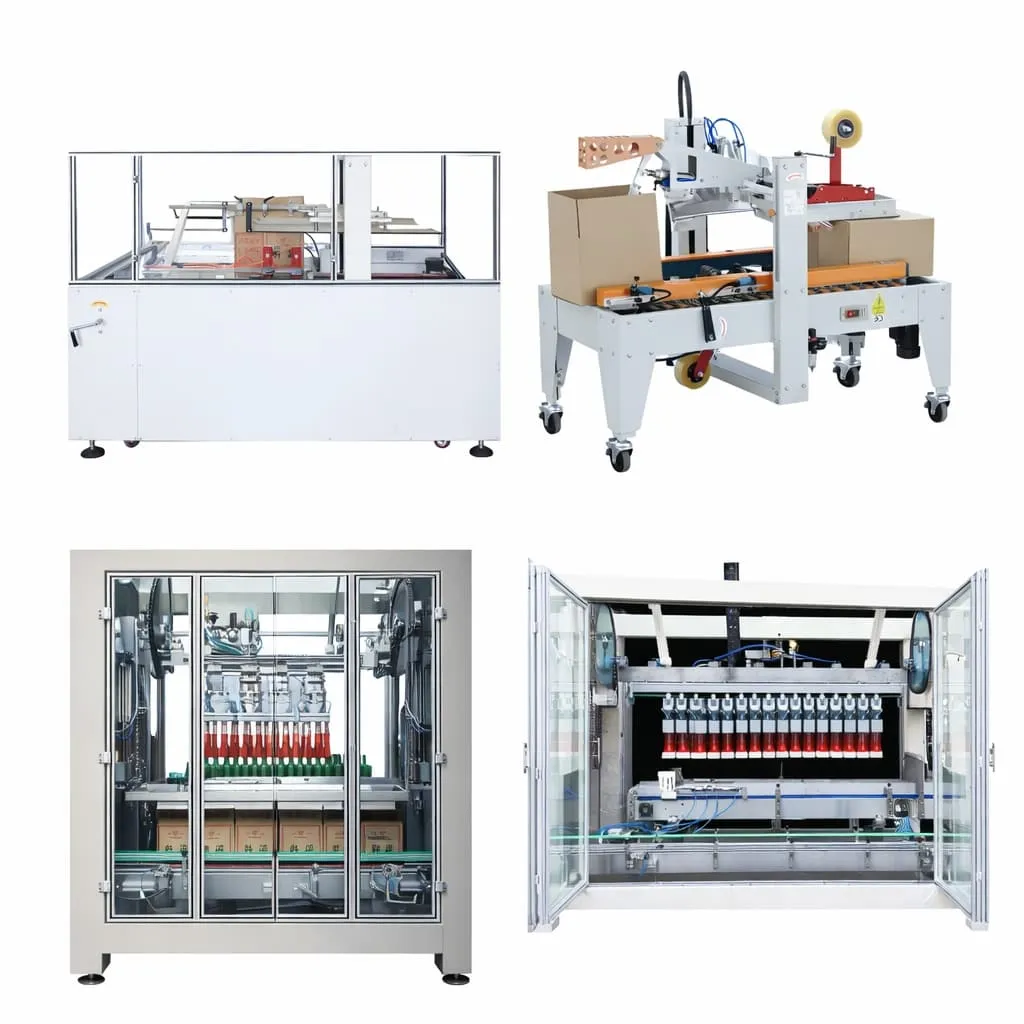

End-of-Line: Packing & Palletizing

Automate the final stage. From Carton Erecting and Case Packing to PE Film Shrink Wrapping and Robotic Palletizing.

"Manual packing is the primary bottleneck. Our systems reduce labor costs by 70% and ensure tight, secure bundles for safe logistics."

💡 Tip: Small factory floor? Our 'Monoblock Erector-Sealer' saves 40% of space.

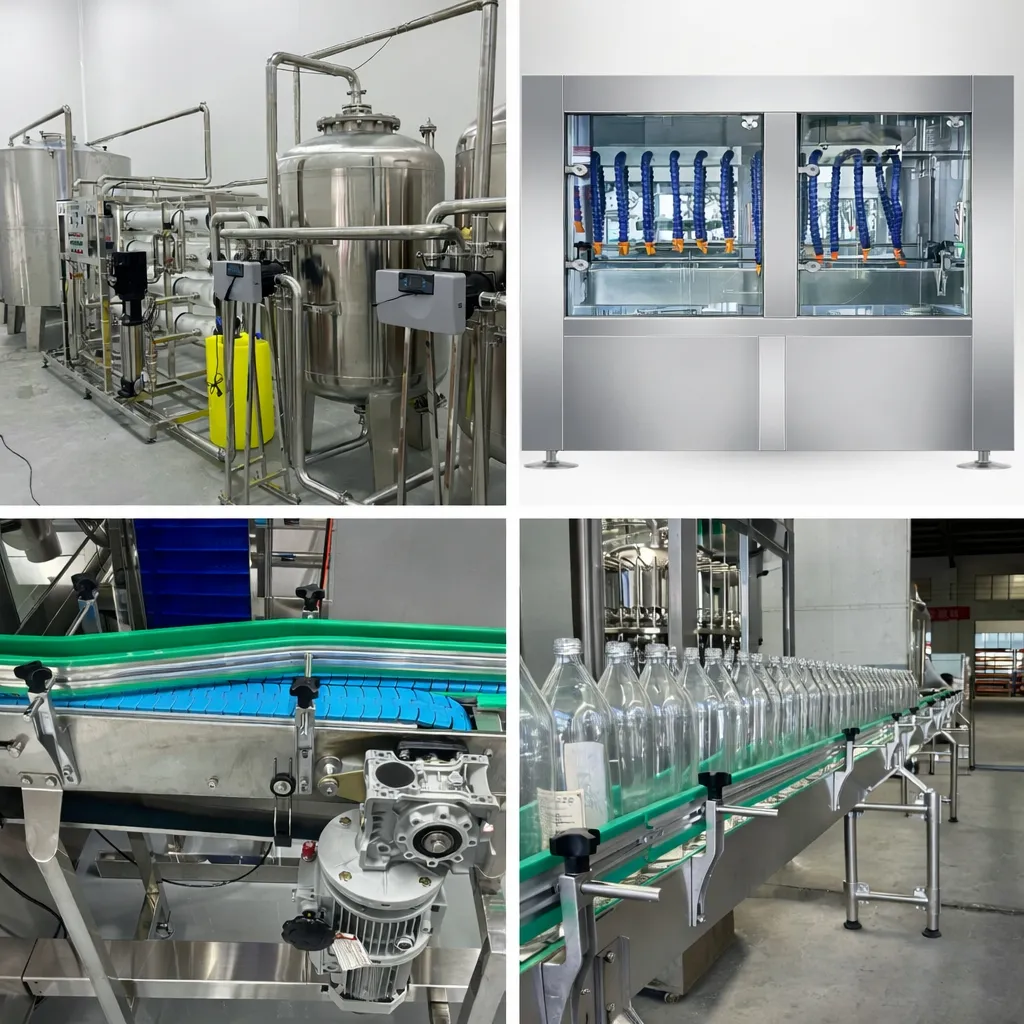

Line Essentials: Conveyors & Treatment

The backbone of a turnkey line. Including RO Water Treatment, Air Dryers, Laser Coders, and intelligent Conveyor Systems.

"A line is only as fast as its slowest link. Our 'Pressure-Free Combining Conveyors' prevent bottle jams and friction damage."

💡 Tip: Wet bottles cause coding errors. Our 'Spider Air Knives' dry the specific coding area instantly.

Tailored Turnkey Solutions for Your Industry

Backed by 20+ years of engineering expertise and an 18,000m² CNC facility, we design liquid packaging lines that match your exact fluid characteristics, production scale, and regulatory hygiene standards.

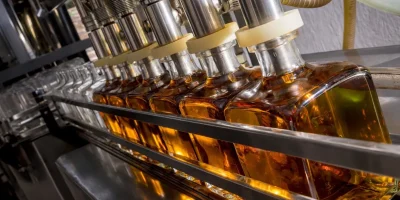

Alcohol & Spirits Bottling Line

Engineered for high-proof liquors (vodka, whiskey, baijiu) where operational safety and absolute fill-level accuracy are critical to your bottom line. Trusted by top-tier distilleries.

The InnoTonda Edge:

Explosion-proof (ATEX) electrical integration and precise negative-pressure filling valves eliminate expensive product giveaway and ensure uniform bottle appearance.

View Spirits Solutions →

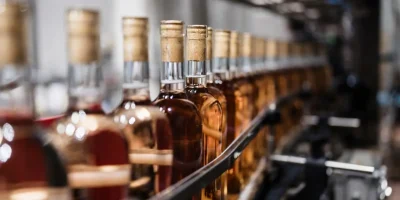

Wine & Premium Fermented Beverage Line

Designed to preserve the complex flavor profiles and shelf-life of premium vintages and fermented wines, matching the rigorous standards of our heritage winery clients.

The InnoTonda Edge:

Low-vacuum filling technology combined with automated nitrogen flushing (pre-corking) to strictly prevent liquid oxidation and bacterial contamination.

View Spirits Solutions →

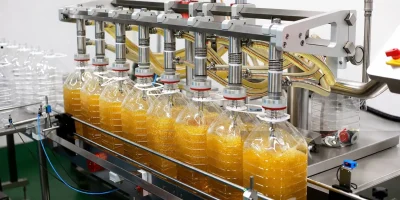

Edible Oil & Viscous Liquid Line

Heavy-duty piston filling systems engineered for high-viscosity liquids (olive oil, syrups, motor oil) that tend to clog machinery or drip onto conveyor belts.

The InnoTonda Edge:

Servo-driven high-torque pistons paired with dynamic vacuum suck-back technology guarantee zero dripping, keeping your production environment perfectly clean.

View Spirits Solutions →

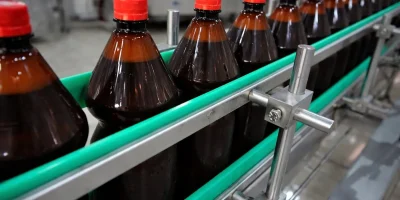

Condiments & Seasoning Line

Specialized for soy sauce, vinegar, and sauces with high salinity that rapidly corrode standard machinery and compromise food safety.

The InnoTonda Edge:

Upgraded 316L anti-corrosive stainless steel structures, food-grade PTFE seals, and easy-wash CIP-ready designs for rapid flavor changeovers without cross-contamination.

View Spirits Solutions →

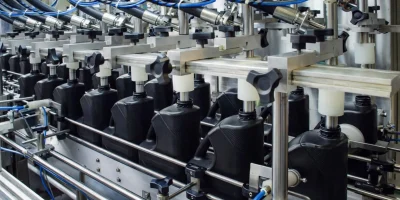

Daily Chemical & Liquid Fertilizer Line

Built for harsh, highly foaming (detergents, shampoos), or corrosive industrial liquids that demand robust, reliable handling at high volumes.

The InnoTonda Edge:

Advanced PLC-controlled tracking filling and bottom-up nozzle diving technology to suppress foam generation, ensuring maximum output speeds without spilling.

View Spirits Solutions →

Pharmaceutical Bottling Line

High-speed, ultra-hygienic FW-series monoblocks designed specifically for micro-dosing high-value liquid medicines, tinctures, and health supplements.

The InnoTonda Edge:

Cleanroom (GMP) compliant sanitary designs ensuring absolute zero-spill accuracy, achieving stable high-speed production for 30ml-150ml vials up to 12,000 BPH.

View Spirits Solutions →

Engineered for Longevity: The Hidden Difference

Why do InnoTonda machines run stably for 10+ years? Because we reject the “Assembly-Only” model. We control every micron of precision in our own 18,000m² facility.

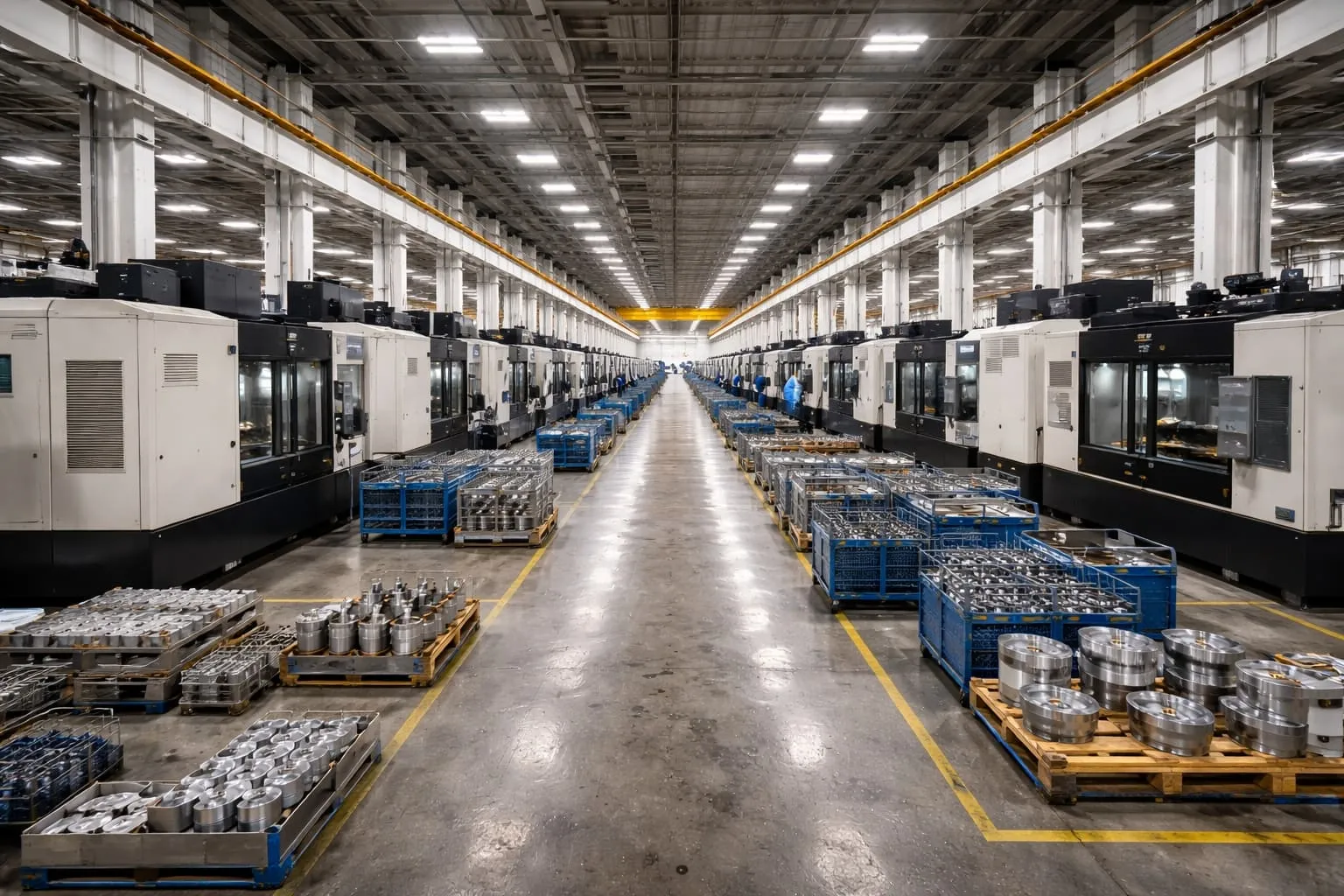

In-house CNC Machining Center filling valve processing

18,000m² In-House CNC Machining

We are not mere assemblers. Core components like filling valves and starwheels are machined in-house with tolerances of ±0.01mm. We control the raw 316L stainless steel quality from the source, cutting out the middlemen and ensuring structural integrity.

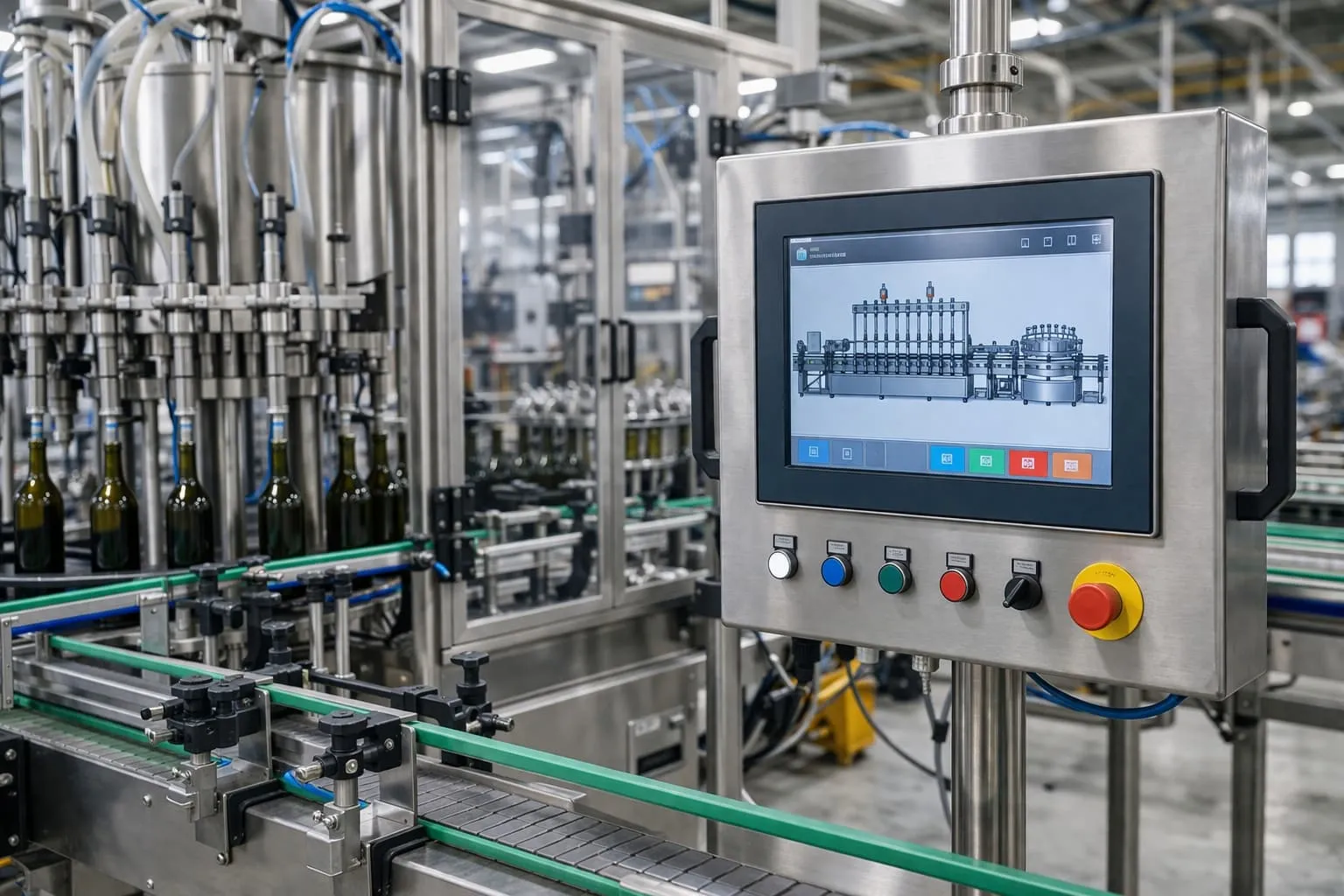

Siemens PLC and Omron sensors inside electrical cabinet

Powered by Siemens & Omron

Open the cabinet to see neat, numbered wiring complying with CE standards. Powered by global standard electrics (Siemens PLC, Omron Sensors, Festo Pneumatics), ensuring that replacement parts are available worldwide for immediate servicing.

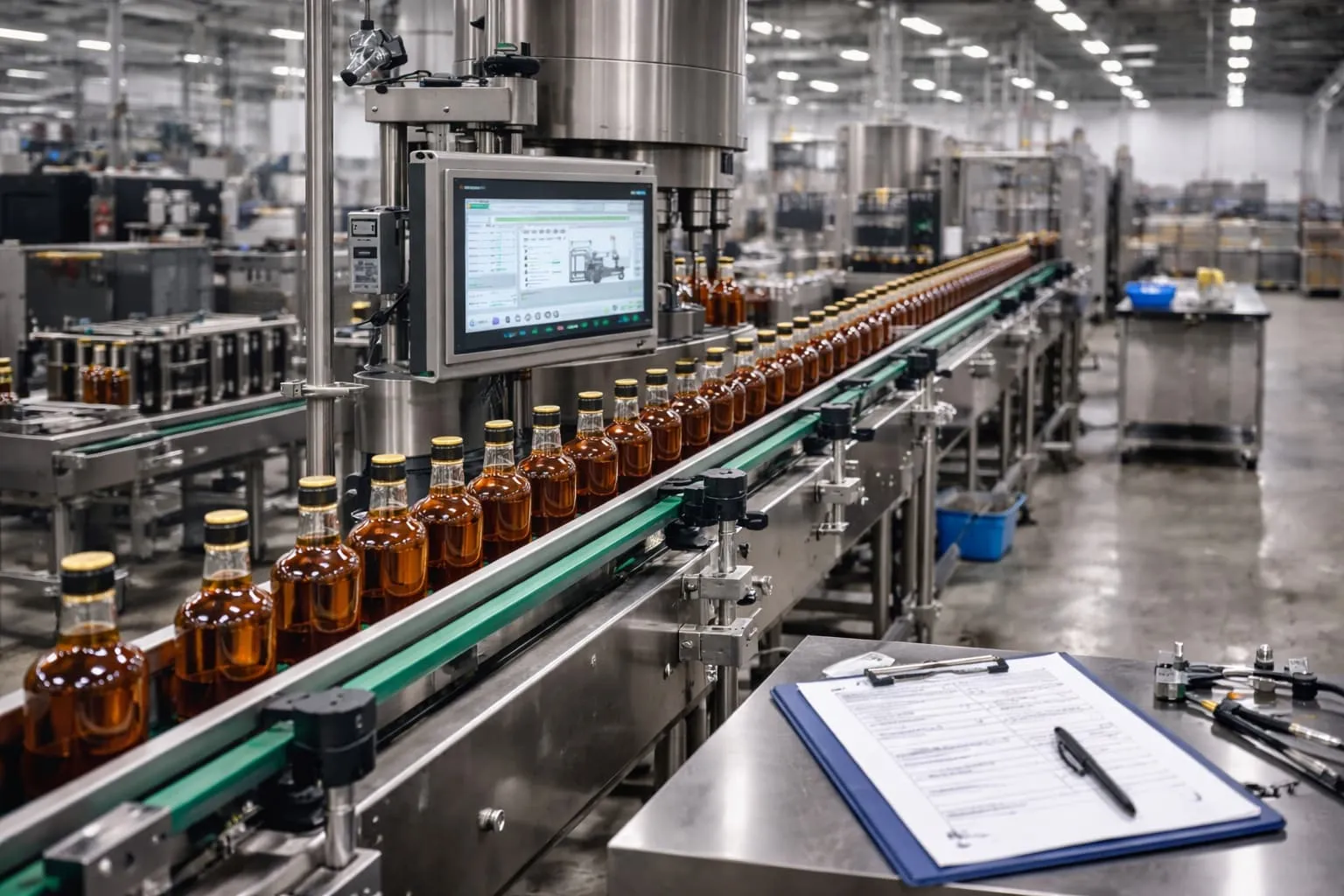

Liquid filling line running 48-hour FAT test with bottles

Rigorous 48-Hour F.A.T.

Before packing, your complete line runs continuously for 48 hours in our facility using your exact sample bottles and caps. You receive an uncut, comprehensive live video report of the successful run before we ship anything.

Your Turnkey Filling Plant, Step-by-Step

Building a production line is a massive undertaking. We make it simple, predictable, and transparent.

Needs Analysis

Our engineers analyze your fluid viscosity, bottle geometry, and target BPH to formulate the optimal machinery matrix.

Custom CAD Layout

We don't just sell machines; we optimize your factory. You receive a precise 2D/3D layout drawing tailored to your floor plan.

Mfg. & Synchronization

All equipment is built and physically synchronized in our plant to guarantee flawless communication as a single ecosystem.

Global Installation

We dispatch expert technicians to your country for installation, final production runs, and hands-on staff training.

Frequently Asked Questions

Can one Liquid Filling Machine handle multiple bottle shapes?

Yes. Our machines feature Tool-Free Quick Changeover technology. By simply replacing the starwheels and adjusting guide rails, one machine can handle round, square, and flat bottles (100ml to 2L). The process typically takes less than 15 minutes.

How do you handle High Viscosity or Corrosive liquids?

For viscous products (oil, shampoo), we use Servo Piston Fillers with anti-drip nozzles. For corrosive liquids (bleach, toilet cleaner), we upgrade the entire wetted path to Anti-Corrosive PP/PVC or Titanium materials to ensure longevity.

Do you offer Customized Turnkey Solutions for limited space?

Yes. We specialize in Custom Engineering. Whether you have a U-shape, L-shape, or straight-line factory layout, our engineers will design a tailored CAD layout to optimize your workflow and maximize space utilization.

How much does a Complete Bottling Line cost?

Prices vary by capacity. Standalone units range from $8,000 - $25,000. Full turnkey lines typically range from $40,000 to $150,000+. Buying direct from our China factory saves you 30-40% compared to European integrators.

What is the filling accuracy and component brand?

We guarantee a filling accuracy of ±1mm (Level) or ±0.5% (Volume). We exclusively use Tier-1 electrical components including Siemens PLC, Omron Sensors, and Schneider contactors to ensure 24/7 stability.

What is the standard lead time and testing process?

Standard lead time is 30-45 days. Before shipment, every machine undergoes a rigorous 48-Hour FAT (Factory Acceptance Test) using your actual sample bottles to ensure perfect synchronization.

Do you provide overseas installation and warranty?

Yes. We dispatch engineers globally for installation and training. All core components come with a 2-Year Warranty. Spare parts are standardized (ISO) and easy to source locally worldwide.

Ready to Visualize Your Line?

Stop guessing if the machine fits. Get a professional proposal tailored to your factory floor.

* Secure & confidential. Response within 12 hours.
