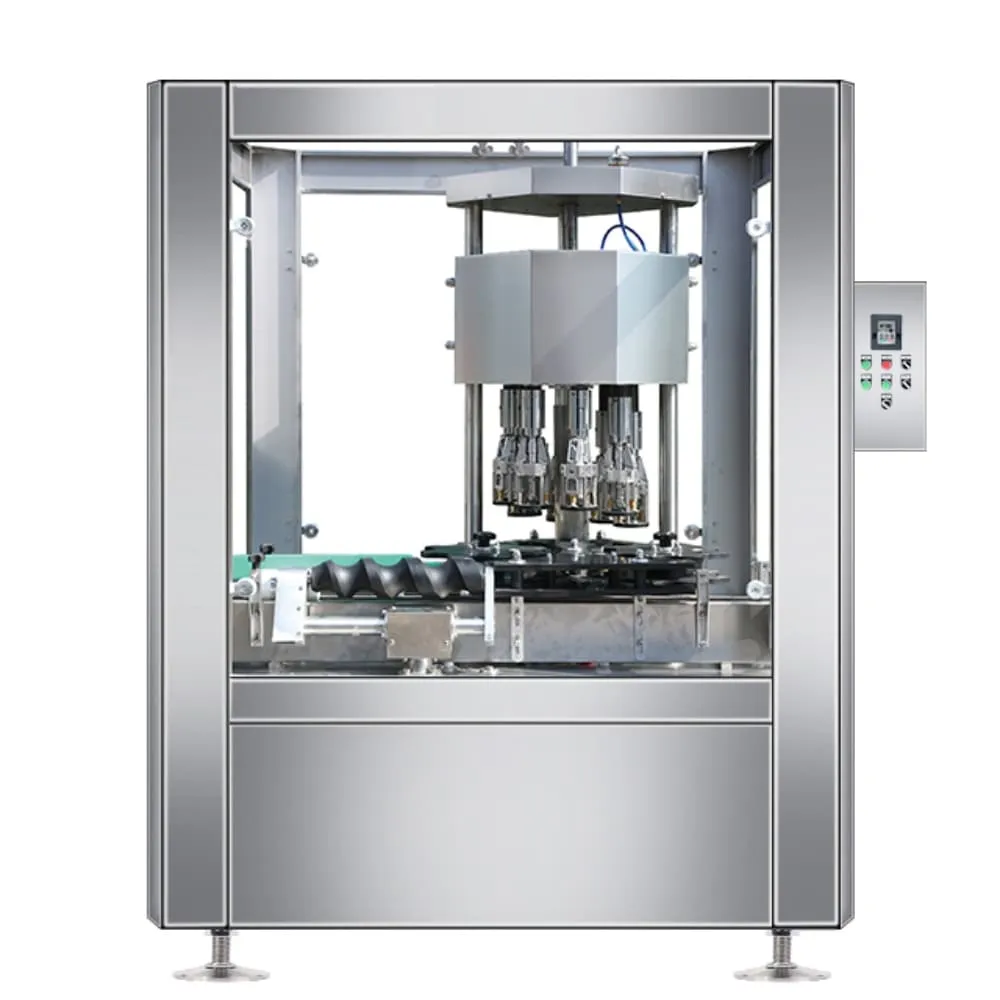

FW Series ROPP Capping Machine
ROPP Capping Machine for Pilfer-Proof Aluminum Caps
Secure sealing for twist-off pilfer-proof aluminum caps on glass bottle lines.
The FW Series is built for aluminum anti-theft cap sealing with model options from 2,000 to 24,000 bottles per hour. It is suitable for bottle diameters φ30-φ90 mm, bottle mouth diameters φ20-φ32 mm, and bottle heights 100-330 mm.
Capacity
2,000-24,000 b/h
Bottle Diameter
φ30-φ90 mm
Bottle Mouth
φ20-φ32 mm
Bottle Height
100-330 mm
- Tight sealing for pilfer-proof aluminum caps
- Clean cap finish with stable bottle-to-head positioning
- Automatic cap arranging and automatic cap hanging
- Optional automatic cap feeder for more automated operation
- FW-1, FW-4, FW-6, FW-8, FW-12, and FW-20 model range
Stable Aluminum Cap Sealing for Glass Bottle Production
Dedicated to twist-off pilfer-proof aluminum caps, the FW Series supports liquor, wine, and other glass bottle projects that require a clean finished closure and steady line operation.

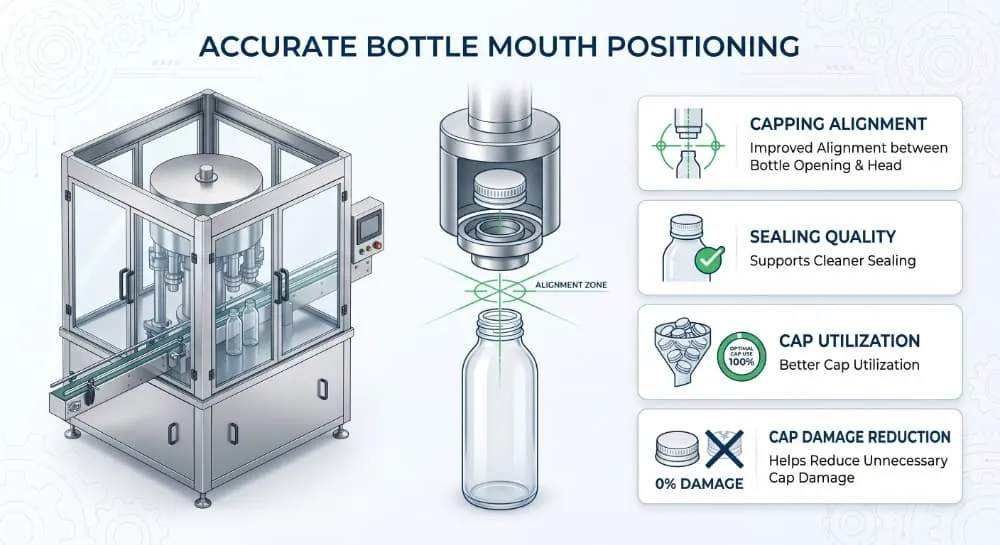

Accurate Bottle Mouth Positioning
Bottle mouth positioning improves alignment between the bottle opening and the capping head. More accurate positioning supports cleaner sealing and better cap utilization during production.

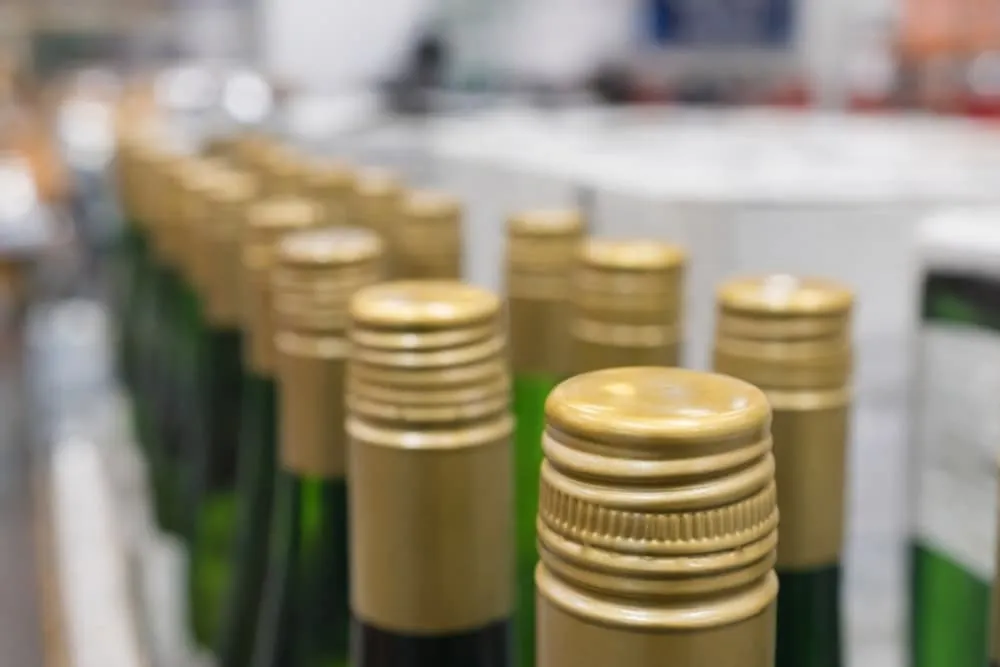

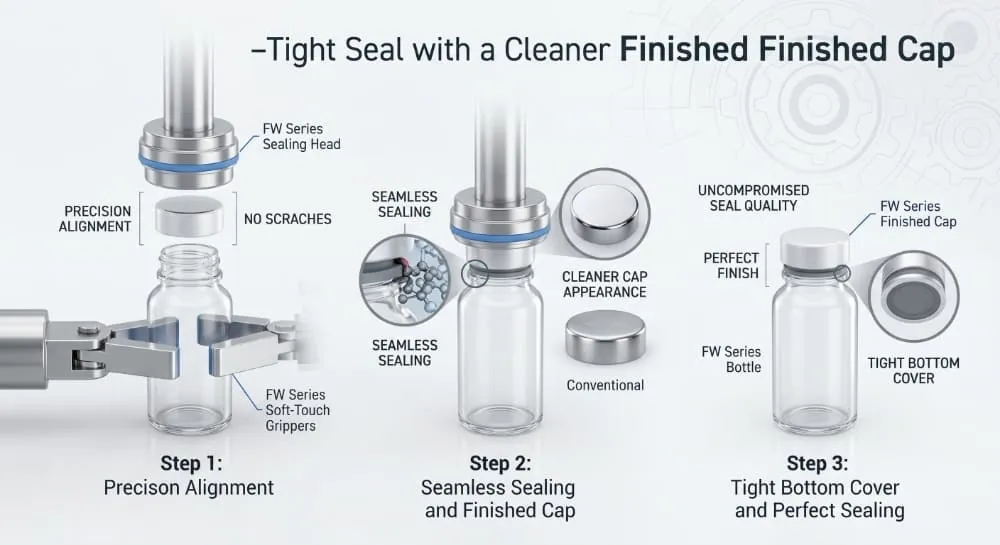

Tight Seal with a Cleaner Finished Cap
The FW Series is designed for seamless sealing, no scratches, and a tight bottom cover. The finished bottle keeps a cleaner cap appearance while maintaining sealing quality at the bottle mouth.
Seamless sealing. No scratches. Tight bottom cover.

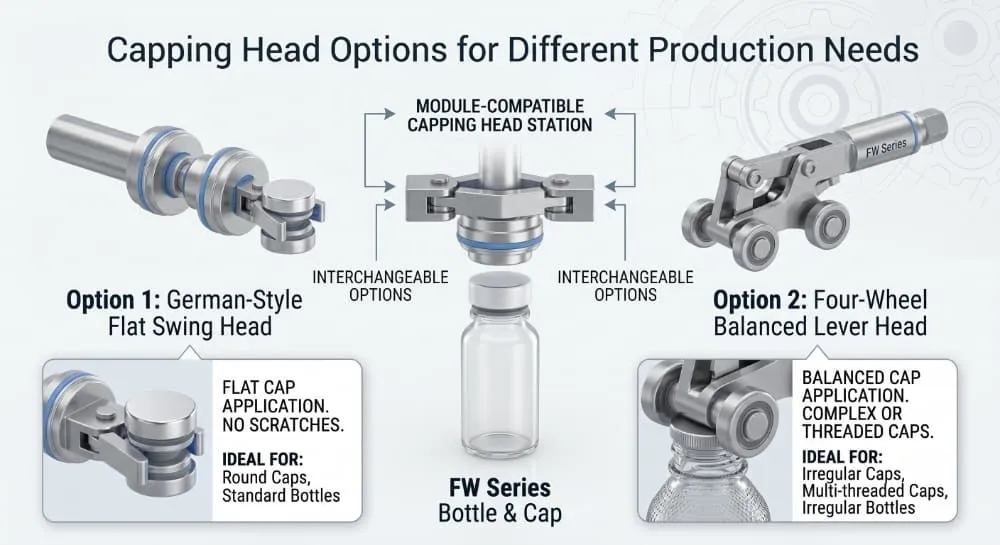

Capping Head Options for Different Production Needs
The capping head can be equipped with either a German-style flat swing head or a four-wheel balanced lever head. Different configurations can be matched to different bottle and cap projects within the FW Series working range.
Head options fit different bottle and cap projects.

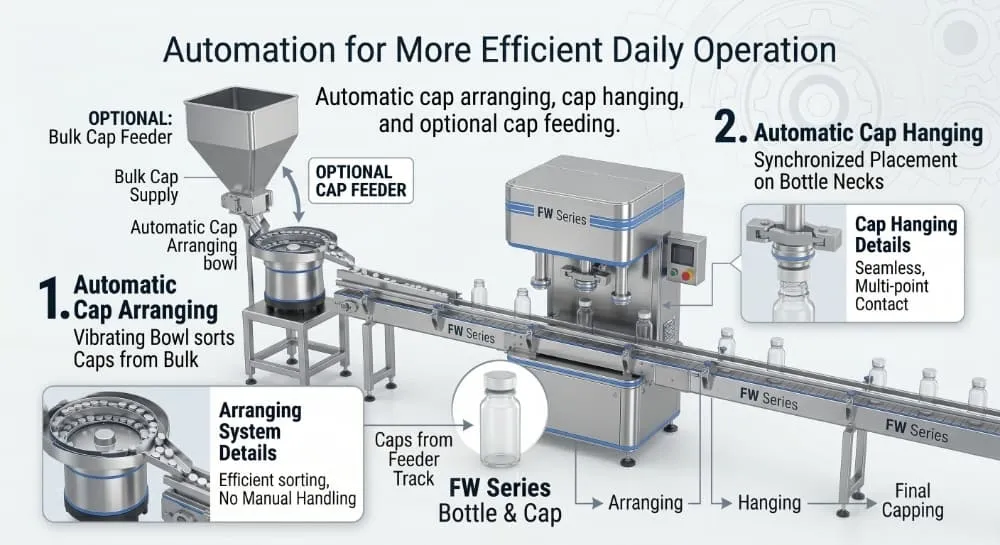

Automation for More Efficient Daily Operation
The FW Series includes automatic cap arranging and automatic cap hanging functions. It can also be equipped with an automatic cap feeder for more automated operation on the line.
Automatic cap arranging, cap hanging, and optional cap feeding.
Production Advantage
Stable Operation for Production Lines
01
Durable Sealing Wheels
Special sealing wheel materials support long service life in daily operation.
01
Better Cap Utilization
More accurate positioning helps reduce cap damage during sealing.
01
Flexible Automation Level
Automatic cap arranging, automatic cap hanging, and optional automatic cap feeding support different production setups.
FW Series Output Range
2,000-6,000 b/h
FW-1, FW-4, and FW-6 cover lower to mid-range output targets for aluminum cap sealing.
8,000-12,000 b/h
FW-8 and FW-12 suit faster line speeds while keeping the same bottle and cap working range.
24,000 b/h
FW-20 covers higher-output production requirements within the same FW Series family.
FW Series Technical Specifications
Suitable for Glass Bottle Lines Using Pilfer-Proof Aluminum Caps

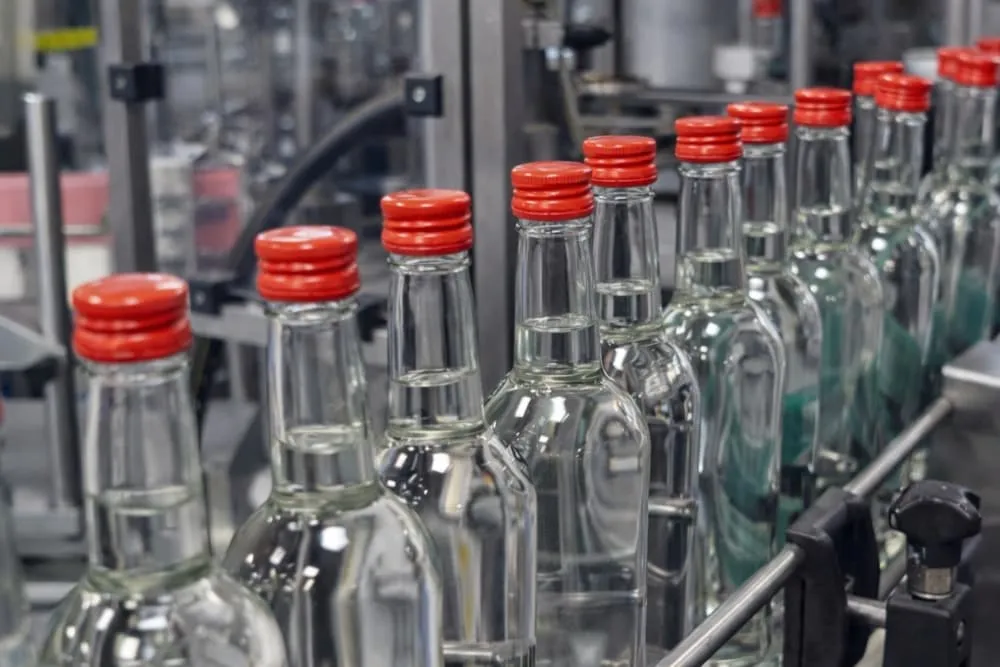

Liquor Bottling
The FW Series fits liquor bottling projects that require twist-off pilfer-proof aluminum cap sealing.
Wine Bottling
FW capping machines suit wine bottle applications within the stated bottle and cap working range.
Other Glass Bottle Products
Projects within the stated bottle diameter, bottle mouth diameter, and bottle height range can be matched to the FW Series.

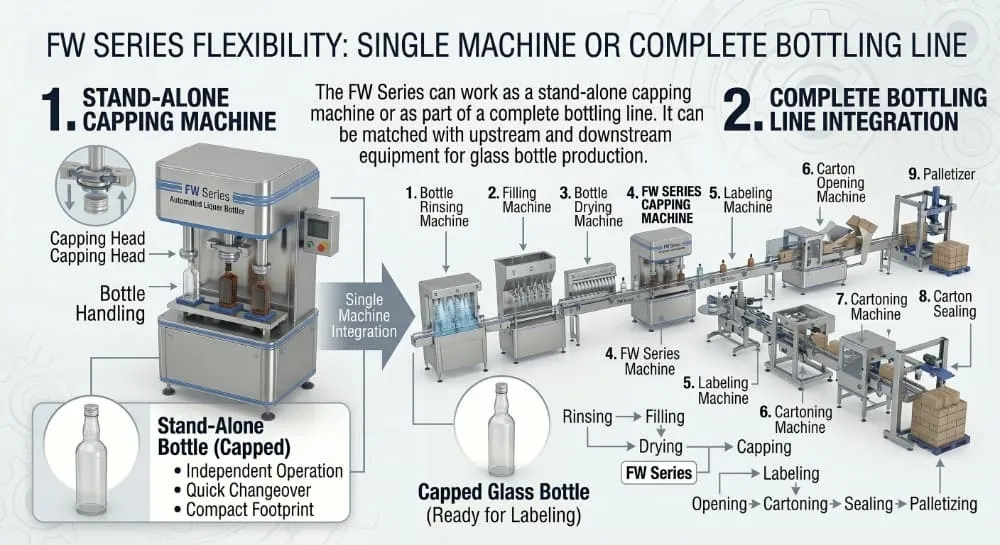

Single Machine or Complete Bottling Line
The FW Series can work as a stand-alone capping machine or as part of a complete bottling line. It can be matched with upstream and downstream equipment for glass bottle production.
- Bottle rinsing machine
- Filling machine
- Bottle drying machine
- Labeling machine
- Carton opening machine
- Cartoning machine
- Carton sealing machine
- Palletizer
Available FW Series Configuration Options
Output-Based Model Matching
Choose a model according to required bottles per hour, from FW-1 to FW-20.
Capping Head Selection
German-style flat swing head or four-wheel balanced lever head.
Automatic Cap Feeding
Optional automatic cap feeder for more automated operation.
Frequently Asked Questions About the FW Series
The FW Series is designed for twist-off pilfer-proof aluminum caps.
It is suitable for bottle diameters φ30-φ90 mm, bottle mouth diameters φ20-φ32 mm, and bottle heights 100-330 mm.
The series covers 2,000 to 24,000 b/h, from FW-1 to FW-20.
Yes. The FW Series includes automatic cap arranging and automatic cap hanging, with optional automatic cap feeder configuration.
Yes. It can be matched with rinsing, filling, drying, labeling, cartoning, carton sealing, and palletizing equipment.
Yes. The FW Series is suitable for glass bottle lines using pilfer-proof aluminum caps within the stated working range.
Need the Right FW Series Model for Your Bottling Line?
Send your bottle diameter, bottle mouth diameter, bottle height, cap type, and required output.
FW Series ROPP Capping Machine
Share your bottle and cap details for model matching and line planning.
