FW Series ROPP Capping Machine
Corking Machine for T-Corks and Natural Cork Bottles
Automatic stopper sorting, stable cork insertion, and bottle-matched corking for wine, spirits, and specialty glass bottle lines.
The FY / FDS Series gives buyers a direct machine path based on stopper type. FDS models are built for glass bottles with T-corks, while FY models are built for glass bottles with natural corks. This makes bottle matching, stopper matching, and output matching more direct during machine selection.
Stopper Types
T-corks and Natural Corks
Capacity Range
2000-5500 b/h
Model Range
FDS-1T / FDS-6T / FY-1 / FY-4 / FY-6
Automation
Auto Sorting + Optional Cork Elevator
- FDS series for T-cork applications
- FY series for natural cork applications
- Automatic cork sorting for smoother feeding
- No bottle, no cork feeding logic
- Optional automatic cork elevator for higher automation
Corking Solutions for Wine, Spirits, and Specialty Bottled Products
Corking affects production rhythm, package appearance, and downstream capsule work. The FY / FDS family separates T-cork projects from natural cork projects so bottle closure selection stays clearer from the start.

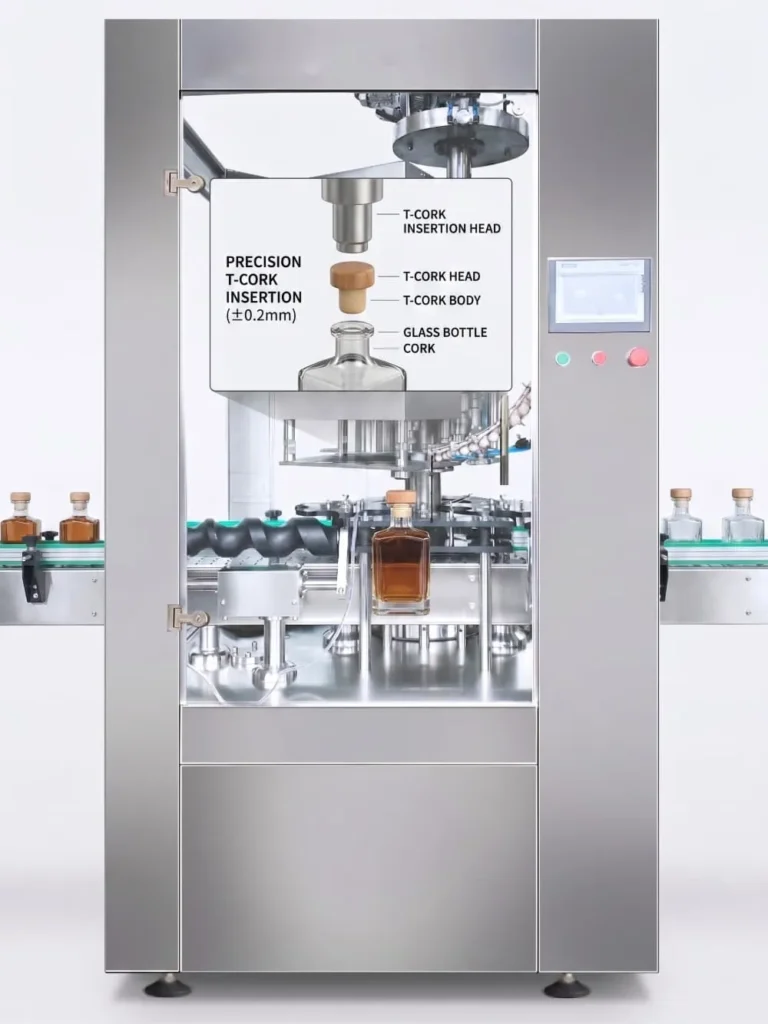

FDS Series for Glass Bottles with T-Corks
FDS-1T and FDS-6T are built for glass bottles with T-corks. This range suits spirits, specialty liquor, and presentation-focused bottle formats where T-cork structure is already fixed in the packaging plan.
Available models cover 2000 b/h and 5000 b/h, giving a direct choice between lower-output and higher-output T-cork production layouts.

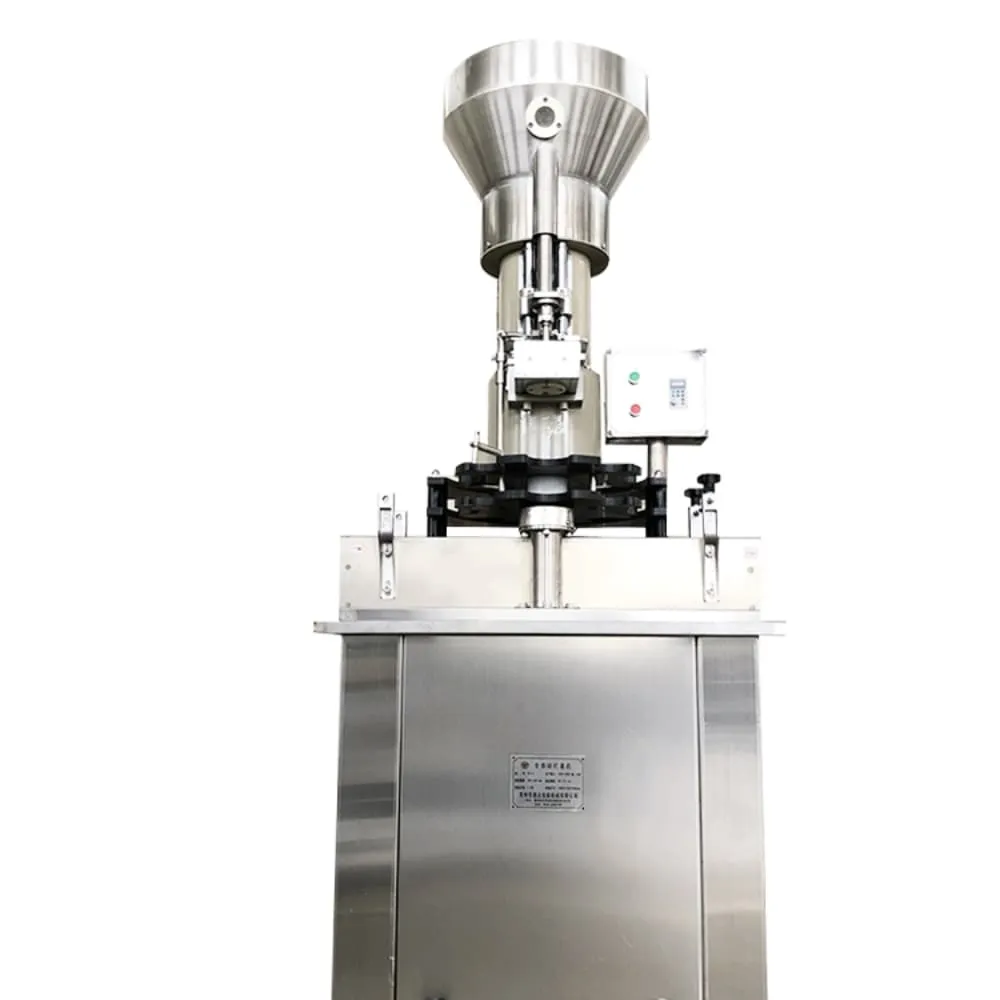

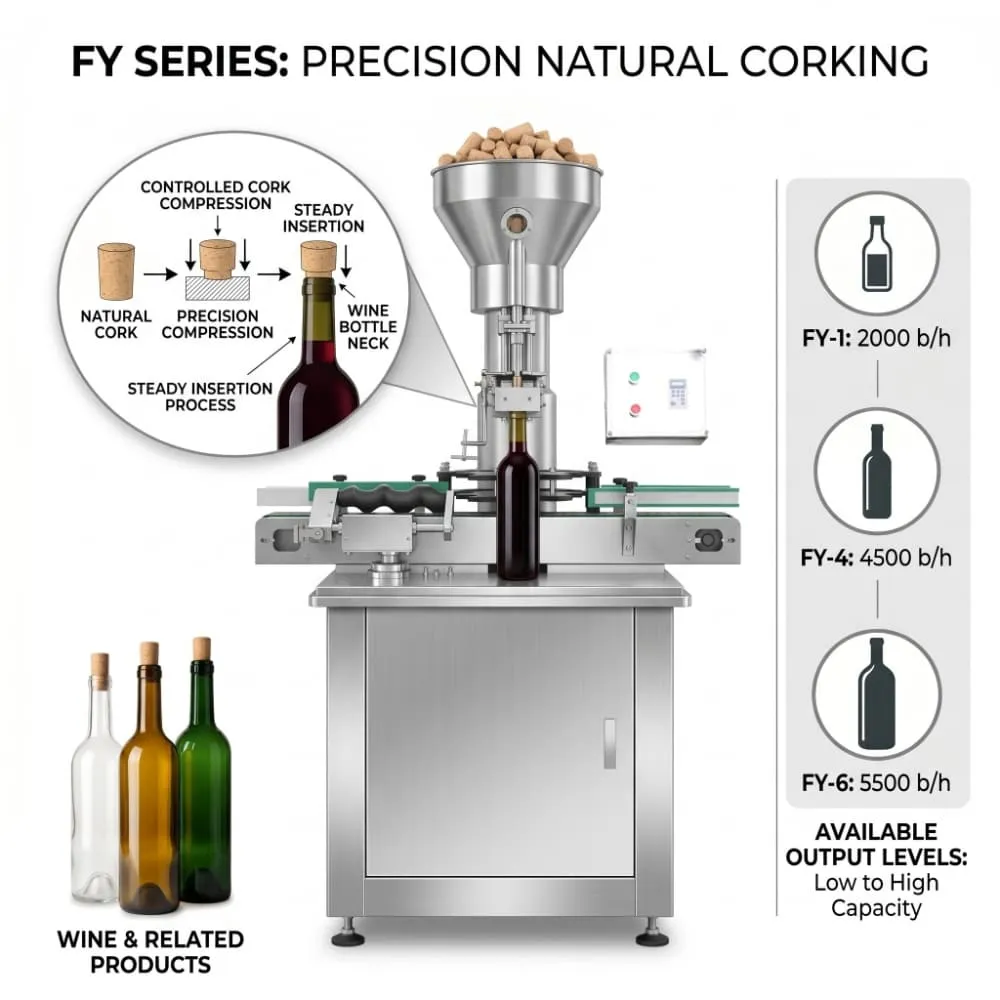

FY Series for Glass Bottles with Natural Corks
FY-1, FY-4, and FY-6 are built for glass bottles with natural corks. This range fits wine and related bottled products that need controlled cork compression and steady insertion across repeated production runs.
Available models cover 2000 b/h, 4500 b/h, and 5500 b/h, which gives natural cork projects a clearer machine path from lower to higher output levels.
Natural cork bottle lines can be matched by stopper structure and output target at the same time.

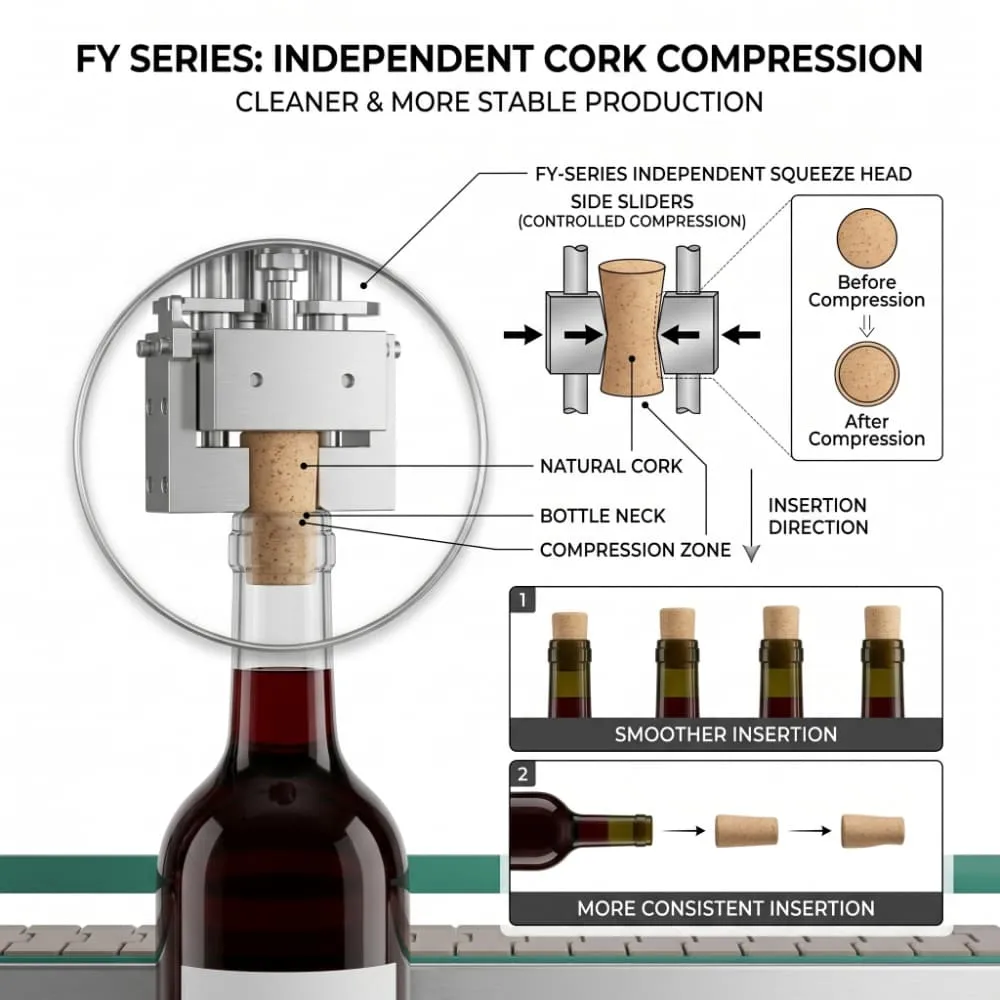

Independent Cork Compression for Smoother Natural Cork Insertion
The FY series uses an independent squeeze head. During corking, side sliders compress the cork to the required diameter before insertion, which supports smoother and more consistent cork entry into the bottle neck.
Controlled cork compression helps natural cork insertion stay cleaner and more stable.

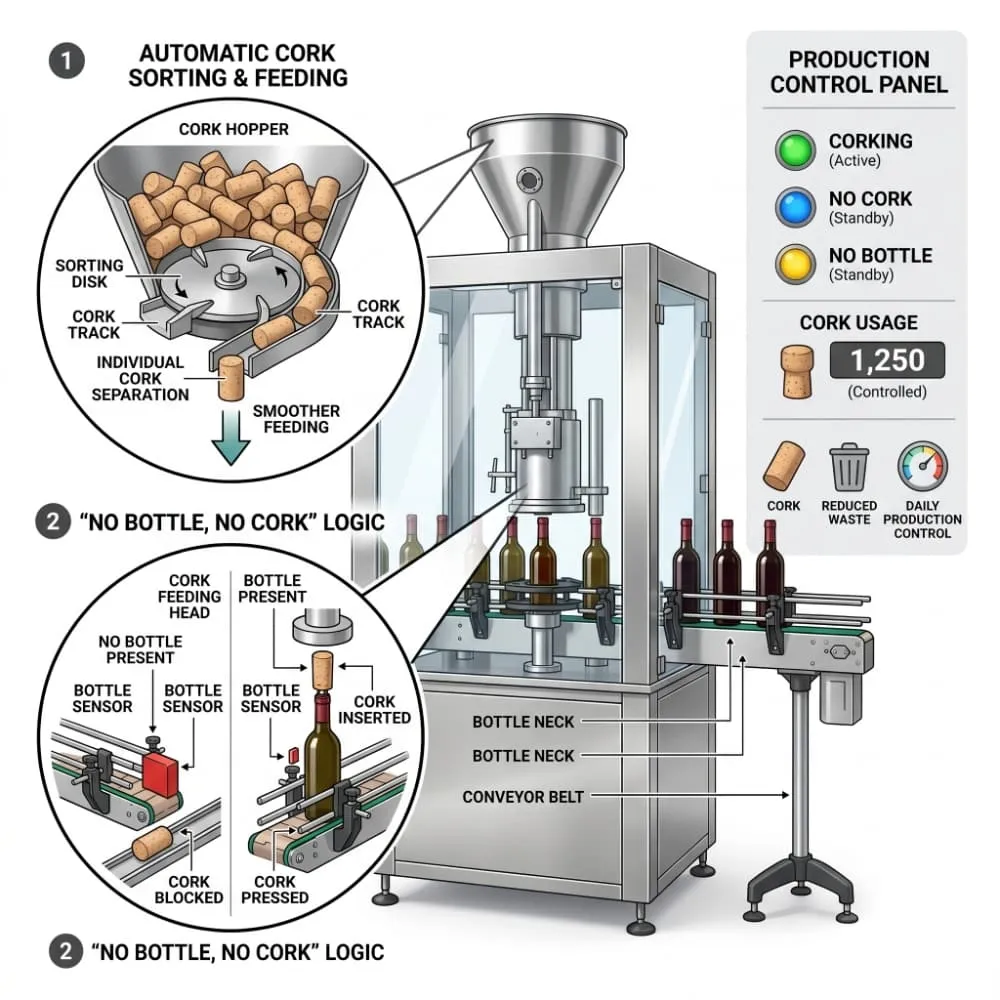

Automatic Cork Sorting and No Bottle, No Cork Feeding
Automatic cork sorting supports smoother feeding during continuous production, while no bottle, no cork feeding logic helps reduce stopper waste and keeps corking work more controlled when bottles do not reach the corking position correctly.
Stopper flow stays more reliable, and cork use stays more controlled through daily production.
Operation Highlights
Practical Advantages for Daily Corking Production
01
Targeted by Stopper Type
FDS series is dedicated to T-corks, while FY series is dedicated to natural corks.
02
Stable Stopper Feeding
Automatic cork sorting supports smoother and more reliable cork delivery to the corking section.
03
Controlled Cork Use
No bottle, no cork feeding logic helps reduce stopper waste during bottle line operation.
04
Easier Automation Upgrade
Automatic cork elevator configuration is available when a higher level of automatic cork feeding is needed.
Compact Power Range for Crown Cap Production
FDS-1T
2000 b/h, bottle diameter Φ30-Φ90 mm, bottle height 100-330 mm, T-corks Φ20.5-Φ23 mm × 35-45 mm, and 1200 × 1150 × 2100 mm machine size.
FDS-6T
5000 b/h, bottle diameter Φ30-Φ90 mm, bottle height 100-330 mm, T-corks Φ20.5-Φ23 mm × 35-45 mm, and 1400 × 1300 × 2600 mm machine size.
FY-1 / FY-4 / FY-6
Optional cork elevator supports more automated cork loading and reduces manual stopper handling around the machine.
Automatic Cork Elevator
Optional cork elevator supports more automated cork loading and reduces manual stopper handling around the machine.
FY / FDS Series Technical Specifications
Suitable Corking Applications
Wine Bottling
FY series natural corking machines fit wine bottle projects that need steady cork compression and insertion on glass bottles.

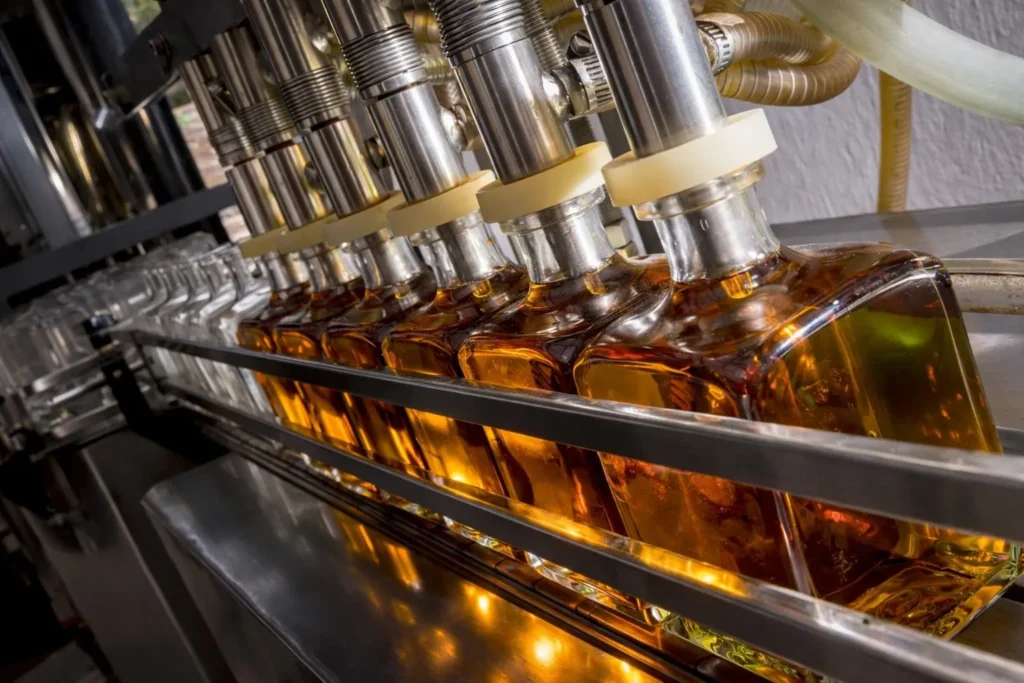

Spirits and Liquor Bottling
FDS series T-cork machines suit spirits and specialty liquor packaging where T-cork closures are part of the bottle presentation plan.
Specialty Glass Bottle Products
The family also fits specialty bottled products where cork choice, bottle format, and package appearance need to stay aligned.
Built for Buyers Comparing T-Cork and Natural Cork Production
This machine family is most useful for buyers who already know they need a corking machine but still need to decide between T-cork structure and natural cork structure, or between lower-output and higher-output layouts. The FY / FDS family separates stopper type first and output level second, which keeps machine review faster and clearer.
Frequently Asked Questions About the FY / FDS Series
FDS series is for T-corks, while FY series is for natural corks. The first step in machine matching is always stopper type.
FDS-1T and FDS-6T are the T-cork options on this page and fit glass bottles using T-corks within the listed stopper range.
Yes. Automatic cork sorting is part of the cork feeding structure in this machine family.
Yes. Automatic cork elevator configuration is available when a higher level of automatic cork feeding is required.
Bottle diameter, bottle height, stopper type, stopper diameter, stopper length, required output, and whether automatic cork feeding is needed are the key details for machine matching.
