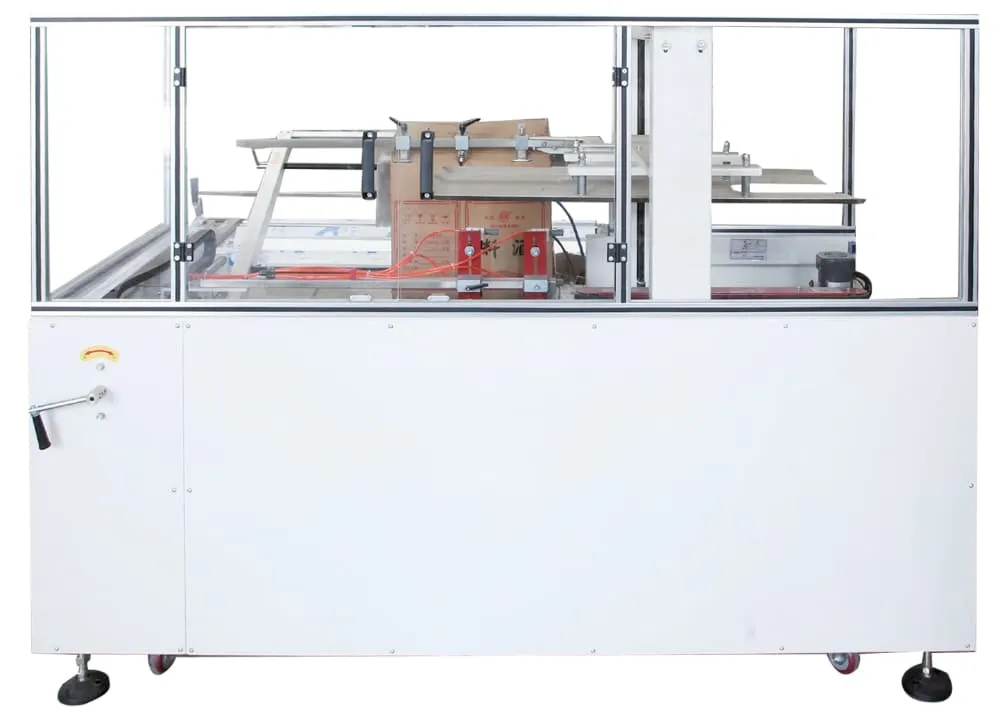

Automatic Carton Erector for End-of-Line Packaging Lines
Automatic carton suction, opening, forming, bottom folding, and bottom sealing in one continuous machine process.
The QKX carton erector is built for packaging lines that need a cleaner and more stable carton-opening section before cartoning and carton sealing. It completes carton suction, opening, forming, bottom folding, and bottom sealing in one machine structure, with output up to 25 cartons per minute.
Unpacking Speed
Carton Magazine
Power
Air Pressure
- Carton suction, opening, forming, bottom folding, and bottom sealing in one pass
- Adjustable unpacking speed through inverter control
- Horizontal carton magazine for refill during operation
- Real-time HMI action status and alarm display
- Door-opening safety protection and shortage alarms for cartons and tape
Faster Carton Opening for Packaging Lines That Need Stable End-of-Line Flow
Carton Opening, Forming, and Bottom Sealing in One Machine
QKX completes carton suction, carton opening, carton forming, bottom folding, and bottom sealing in one machine cycle. This gives packaging lines a cleaner and more direct carton erecting section before case packing and carton sealing.
Up to 25 Cartons per Minute with Adjustable Speed
The unpacking speed reaches up to 25 cartons per minute, and speed adjustment is handled through inverter control. This helps carton opening speed match different downstream packing rhythms more easily.
HMI Control with Real-time Machine Status and Alarm Display
The man-machine interface shows action status and alarm information in real time. This helps operators respond faster to supply issues, running issues, and material shortages during production.
Horizontal Carton Storage for Refill Without Stopping
The carton magazine uses a horizontal carton storage structure, so empty cartons can be replenished during operation without stopping the machine. This helps reduce interruption on longer production runs and lowers manual handling pressure around the carton feed area.
Practical Advantages for Daily Carton Erecting
01
One-pass Carton Preparation
Carton suction, opening, forming, bottom folding, and bottom sealing stay within one automatic machine section.
02
Faster Refill Workflow
The horizontal carton magazine allows carton replenishment without shutting the machine down.
03
Better Running Visibility
The HMI shows machine status and alarm information directly during production.
04
Safer Daily Use
Door-opening safety protection helps the machine respond immediately when the protective door is opened.
Carton Shortage Alerts, Tape Alerts, and Safer Mechanical Running
Low-carton Alert
Automatic reminder functions help the operator respond earlier before the carton feed runs empty.
No-tape Alert
Automatic tape shortage reminders help reduce unexpected interruption at the bottom sealing section.
Safety Door Protection
When the safety door opens, the machine pauses automatically, alarms, and the warning light flashes.
Cam Continuous System
The cam continuous system supports more accurate mechanical movement through the carton erecting process.
QKX Automatic Carton Erector Technical Specifications
Suitable Carton Erecting Applications
Wine Bottling End-of-Line Packaging
Suitable for wine filling lines where cartons must be opened and formed before downstream carton packing and carton sealing.
Liquor Bottling End-of-Line Packaging
Fits liquor packaging lines that need stable carton preparation before case loading and carton sealing.
Automatic Secondary Packaging Lines
Suitable for packaging lines that need automatic carton preparation before cartoning, carton sealing, and palletizing.
Built for Buyers Comparing Manual Carton Opening and Automatic Case Erecting
This machine is most useful for buyers who already know they need cartons opened automatically but still need clear answers on four points: speed, carton size range, refill method, and how the machine fits into the whole line. QKX answers those points directly with up to 25 cartons per minute, defined carton size limits, horizontal magazine refill, and a clear end-of-line integration path.
Frequently Asked Questions About the QKX Carton Erector
Yes. The carton magazine uses a horizontal storage structure, so empty cartons can be replenished during operation.
The machine pauses automatically, alarms, and the indicator light flashes.
Carton length, width, height, required speed, tape width, outlet table height requirement, and whether the machine will connect to a cartoner or carton sealer are the key details for machine matching.
Need the Right Carton Erector for Your End-of-Line Packaging Line?
Send your carton length, width, height, required speed, tape width, and downstream packing layout.
QKX Automatic Carton Erector
Share your carton and end-of-line details for model matching and packaging line planning.
