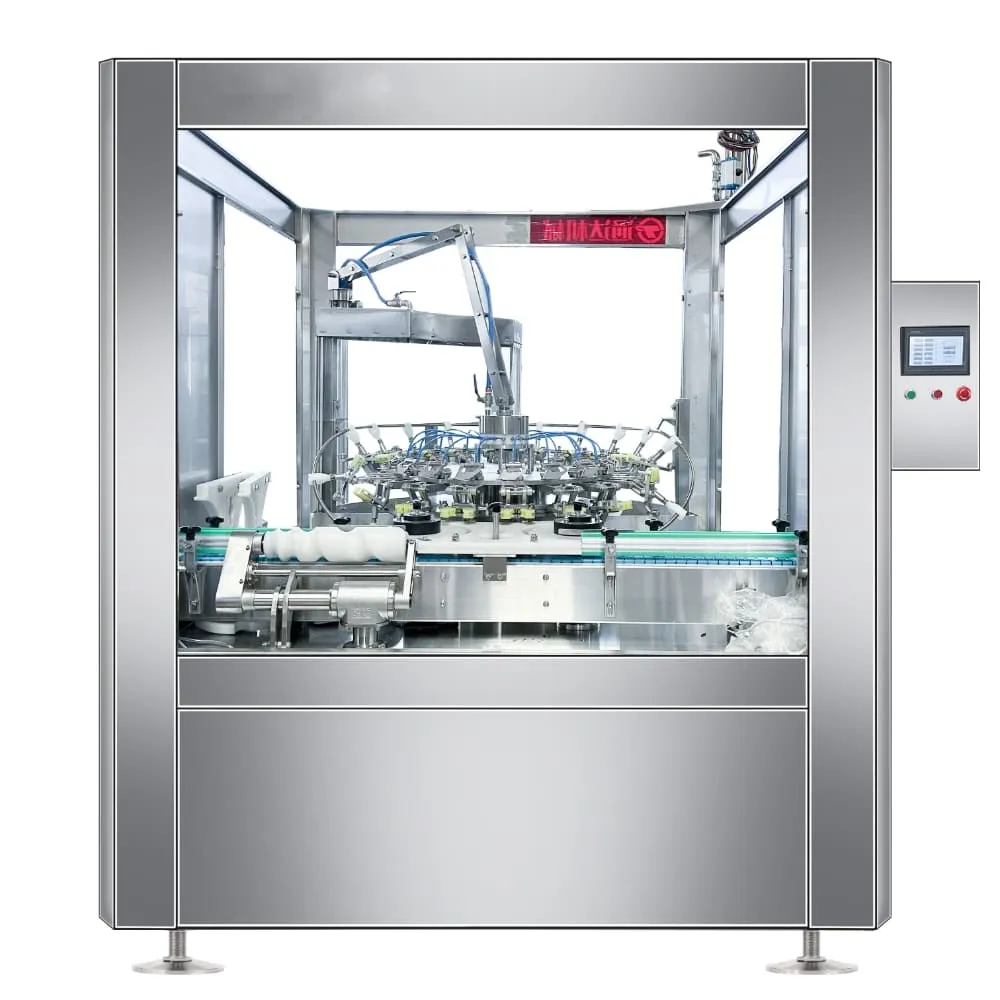

Automatic Rotary Rinsing Machine for Glass and PET Bottles
Inner rinsing and outer shower for bottle preparation before filling.
The QSP Series is built for inner rinsing and outer shower of glass bottles and polyester bottles before filling. The current model range covers QSP-12 to QSP-96, with output from 2,000 to 24,000 bottles per hour.
Capacity
2,000-24,000 b/h
Bottle Height
Bottle Diameter
Bottle Mouth
- Inner rinsing and outer shower in one machine
- Suitable for glass bottles and polyester bottles
- Water circulation design for reduced water use
- Cold water, hot water, circulating water, and alternating hot/cold rinsing available
- Model range from QSP-12 to QSP-96 for different output targets
Rotary Bottle Rinsing for Production Lines That Need Stable Bottle Preparation

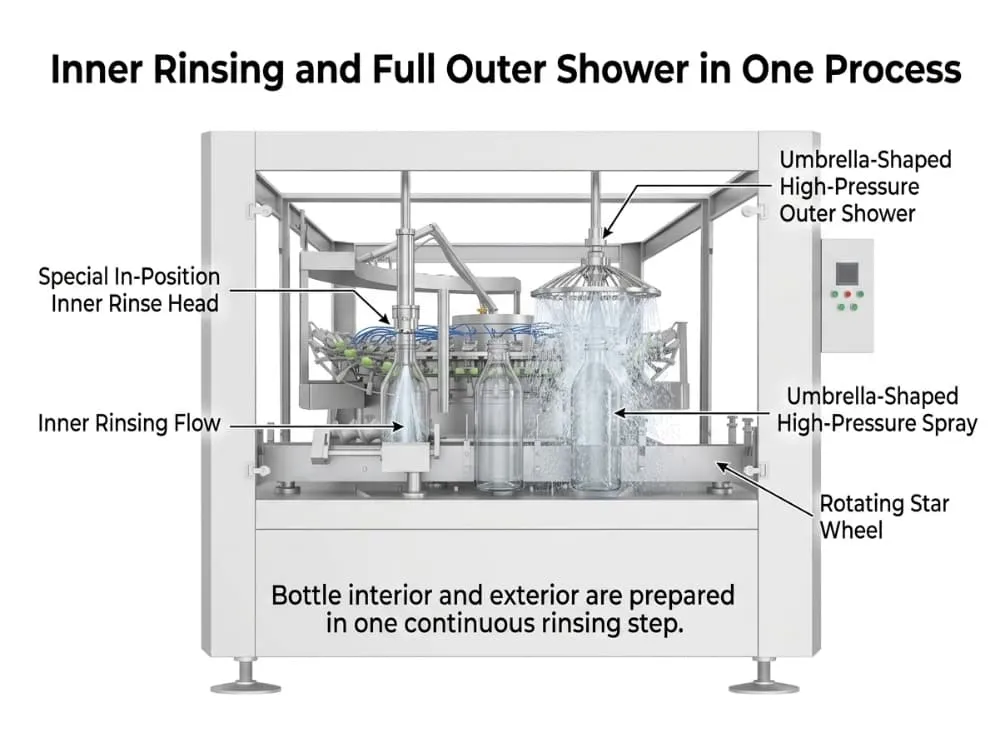

Inner Rinsing and Full Outer Shower in One Process
The QSP Series is designed for inner rinsing and outer shower of bottles. A special water distribution structure supports in-position rinsing, while the umbrella-shaped high-pressure outer shower sprays the bottle exterior from multiple directions.

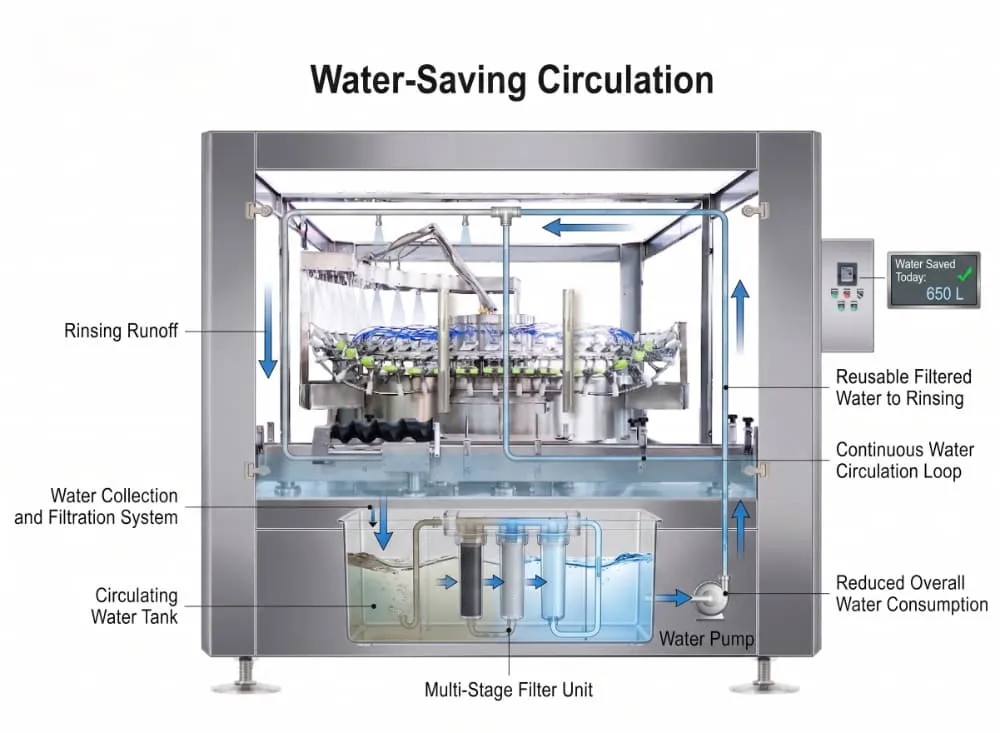

Water-Saving Circulation for Daily Production
The machine is equipped with a circulating water tank. Filtered water can be reused in circulation, which helps reduce overall water consumption during production while keeping rinsing work more stable.

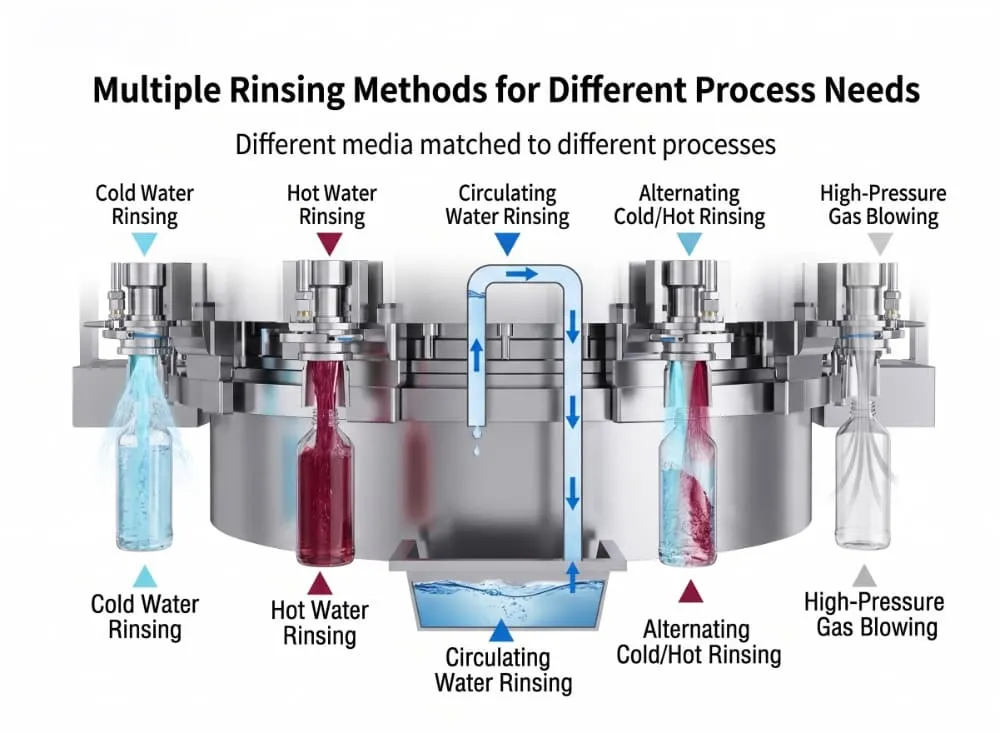

Multiple Rinsing Methods for Different Process Needs
The QSP Series supports cold water rinsing, hot water rinsing, circulating water rinsing, and alternating cold and hot water rinsing. High-pressure clean gas can also be used for bottle blowing where required by the process.
Suitable Bottle Range for Regular Bottling Projects

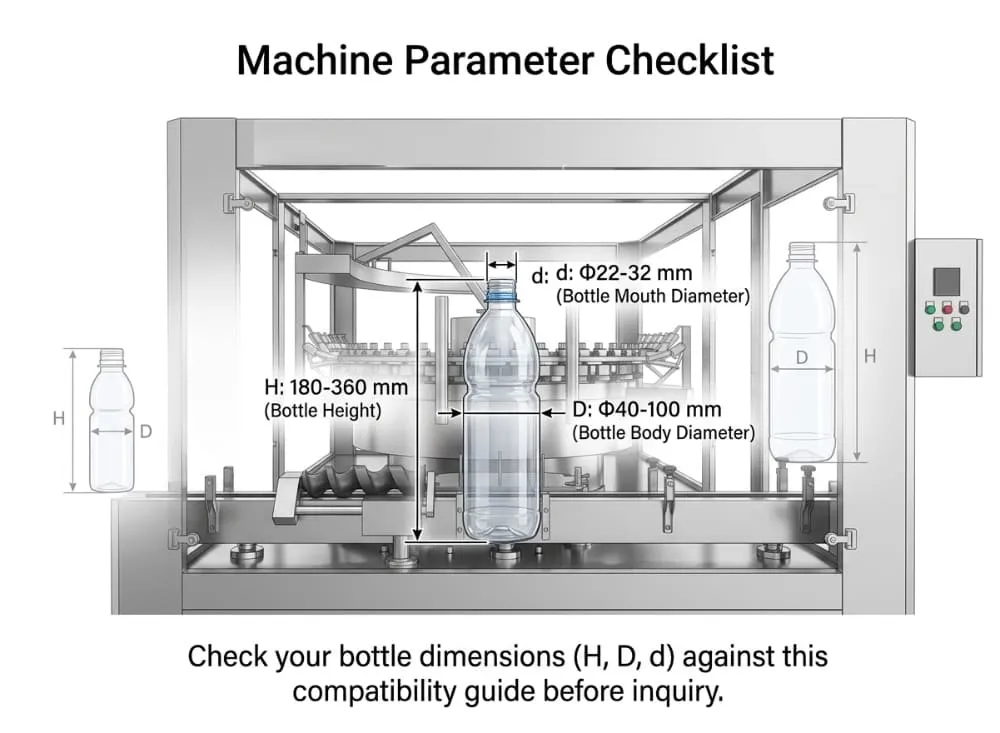

The listed models are suitable for bottle heights 180-360 mm, bottle diameters Φ40-100 mm, and bottle mouth diameters Φ22-32 mm. This makes model selection faster when the bottle format is already fixed.
Bottle height, body diameter, and mouth size can be checked before inquiry.
Practical Advantages for QSP Series Bottle Rinsing
01
Thorough Rinsing Coverage
Inner rinsing and multi-direction outer shower support cleaner bottle preparation before filling
02
Lower Water Consumption
The circulation tank and filtered water reuse design help reduce water use in daily operation
03
Broad Output Range
From 2,000 to 24,000 b/h, the series covers smaller projects and higher-capacity lines within one product family.
QSP Series Output and Model Selection
Lower-Output Models
QSP-12, QSP-16, and QSP-18 cover 2,000 to 4,000 b/h where bottle rinsing demand is moderate and line speed is lower.
Mid-Range Models
QSP-24, QSP-30, QSP-40, and QSP-48 cover 4,000 to 10,000 b/h for regular bottling lines that need higher rotary rinsing throughput.
Higher-Output Models
QSP-60, QSP-72, QSP-84, and QSP-96 cover 12,000 to 24,000 b/h for larger-scale production lines.
QSP Series Technical Specifications
Suitable Bottle Rinsing Applications Before Filling
Wine Bottling Lines
The production line layout in the catalog includes QSP-48 in a wine bottling configuration before filling, capping, drying, and labeling.
Liquor Bottling Lines
The catalog also shows QSP-48 in a liquor bottling line layout as the bottle rinsing section before downstream process equipment.
Glass and PET Bottle Preparation
The QSP Series is built for glass bottles and polyester bottles before filling and downstream packaging operations.
Built for Single-Machine Use or Complete Bottling Lines
The production line layout in the catalog shows QSP-48 used together with equal liquid level filling, ROPP capping, bottle drying, labeling, and end-of-line packing equipment. The QSP Series fits both stand-alone bottle rinsing purchase plans and complete bottling line planning.
- Equal liquid level filling machine
- ROPP capping machine
- Bottle drying machine
- Sticker labeling machine
- Automatic carton opening machine
- Automatic cartoning machine
- Automatic carton sealing machine
- Palletizer
Frequently Asked Questions About the QSP Series
Cold water, hot water, circulating water, alternating cold and hot water, and high-pressure clean gas are available according to process needs.
Yes. QSP-48 appears in line layouts together with filling, capping, drying, labeling, and packing equipment.
Bottle height, bottle diameter, bottle mouth diameter, bottle material, required output, and rinsing method are the key details for model matching.
Need the Right QSP Series Rotary Rinsing Machine for Your Bottling Line?
Send your bottle height, bottle diameter, bottle mouth diameter, bottle material, target output, and preferred rinsing method.
QSP Series Automatic Rotary Rinsing Machine
Share your bottle details for model matching and rinsing section planning.
