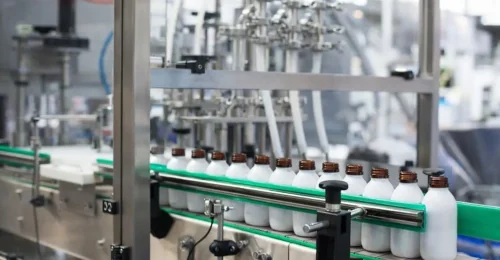

Pharmaceutical Bottling Line for Oral Liquids & Liquid Medicines
Integrated rinsing, filling, capping, drying, labeling and secondary packing solutions for oral liquids, syrups and other bottled pharmaceutical liquids.
Designed around 30–150ml oral liquid packaging
Track filling with fast multi-head capping
Anti-drip suction return and anti-splash design
Available as stand-alone machines or complete lines
Built for Practical Oral Liquid Production
This solution focuses on oral liquids, syrups and small-bottle pharmaceutical liquids, with configuration centered on practical bottle handling, filling, capping, drying and packing requirements.
MotivaPac helps customers match bottle rinsing, precision filling, capping, bottle drying, labeling and end-of-line packing into one more practical packaging project.
Integrated Oral Liquid Bottling Solutions
Custom pharmaceutical bottling line for oral liquids, syrups and liquid medicines. Integrated rinsing, filling, capping, drying, labeling and packing solutions for 30–150ml and other bottle formats.
Oral Liquids
Syrups
30-150 ml
Built for Small-Bottle Pharmaceutical Filling Projects
MotivaPac pharmaceutical bottling lines are designed for manufacturers who need a more complete production solution for oral liquids, syrups and other bottled liquid medicines. The page helps buyers review line logic, application fit and configuration choice in one place.
01
Oral Liquid Bottles
Designed for targeted small-dose oral liquid packaging with faster, cleaner and more stable filling and sealing.
02
Syrup Bottles
Suitable for syrup-style projects that may require wider bottle and volume matching options across the line.
03
Liquid Medicine Bottles
Applicable to bottled pharmaceutical liquids that need bottle cleaning, accurate filling and reliable downstream finishing.
04
Line-Ready Packaging
Supports stand-alone machine supply or complete integration with drying, labeling, cartoning and sealing equipment.
Complete Pharmaceutical Bottling Line Overview
A typical pharmaceutical bottling solution can include bottle infeed, bottle rinsing, precision filling, capping or sealing, bottle drying, labeling and secondary packing. The final structure depends on bottle type, closure style, target output and workshop layout.
Bottle Infeed
Stable bottle transfer into the upstream section
Bottle Rinsing
Pre-filling bottle cleaning for cleaner handling
Filling
Capping / Sealing
Fast multi-head capping or matched closure handling
Bottle Drying
Prepare bottle surfaces before labeling
Labeling
Round-bottle or other label application needs
Cartoning
Case Sealing
Complete downstream packaging flow
How the Pharmaceutical Bottling Line Works
1.Bottle Rinsing
Bottle rinsing improves pre-filling cleanliness and creates a more stable upstream process. Depending on the project, the rinsing unit can be matched with filling, capping, drying and labeling equipment as part of a broader bottling system.
2. Precision Filling
The filling section should be chosen according to product type, fill volume, bottle shape and packaging goal. For oral liquids, the targeted tracking monoblock is the most relevant anchor product. For wider bottle and volume ranges, other integrated monoblock or filling structures may be more suitable.

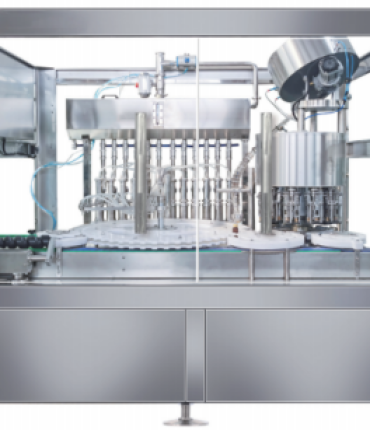

Tracking Monoblock for Oral Liquids
Electronic Quantitative Filling

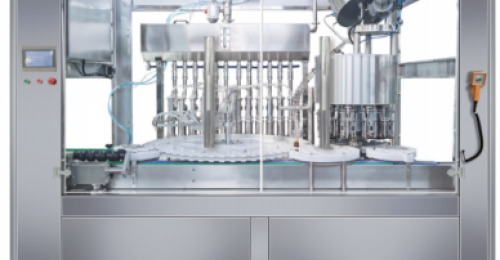

Rinsing-Filling-Capping Monoblock
3. Capping / Sealing
After filling, bottles move into capping or sealing. For oral liquid projects, fast multi-head capping improves efficiency and helps maintain a smoother line rhythm. Closure style should always be matched to bottle design and downstream packaging requirements.
4. Bottle Drying & Labeling
When rinsing is used upstream, bottle drying helps prepare containers for cleaner label application. For pharmaceutical round bottles, positioning sticker labeling can improve visual consistency and wrap-around labeling quality.
5. End-of-Line Packing
For customers pursuing higher packaging automation, the solution can extend into carton opening, cartoning, carton sealing and other downstream handling stages to complete the line.
Recommended Machine Configuration
The line is presented as a complete system first, then translated into a machine configuration buyers can review quickly.
| Process | Recommended Equipment | Main Function | Notes |
|---|---|---|---|
| Bottle Rinsing | Automatic Bottle Rinsing Machine | Pre-filling bottle cleaning | Can be matched as a stand-alone machine or part of a full line |
| Filling & Capping | Tracking Filling and Capping Monoblock | Oral liquid filling with fast multi-head capping | Best-positioned anchor for 30–150ml oral liquid projects |
| Alternative Upstream Integration | Rinsing Filling Capping Monoblock | Combined bottle handling, filling and sealing | Suitable for broader bottle and fill ranges |
| Bottle Drying | Spider Arm Bottle Drying Machine | Prepare bottle surface before labeling | Especially useful after rinsing stage |
| Labeling | Positioning Sticker Labeling Machine | Round bottle label application | Suitable for pharmaceutical round bottle labeling needs |
| Secondary Packing | Carton Opening / Cartoning / Carton Sealing | End-of-line automation | Optional based on output and labor strategy |
Bottle, Volume and Output Compatibility

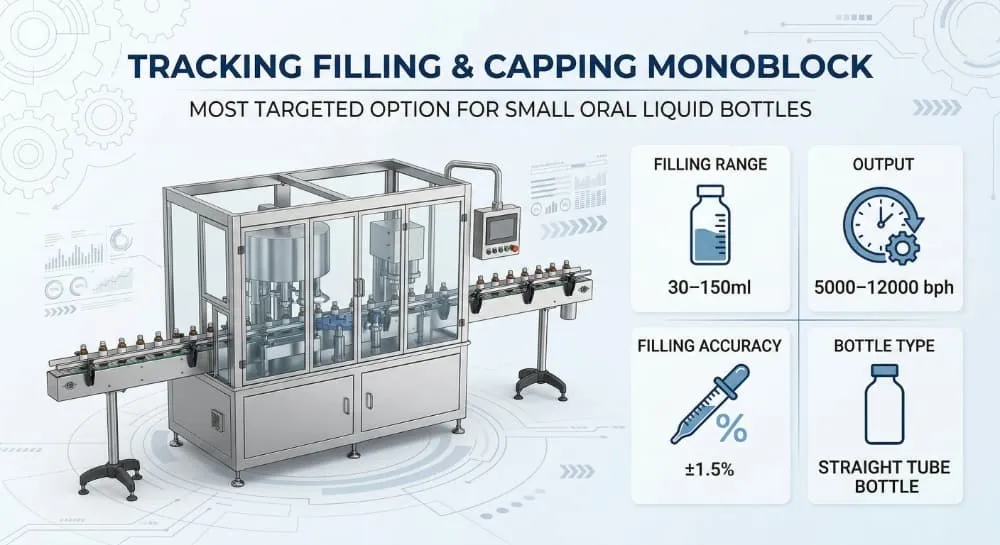

Tracking Filling & Capping Monoblock
The strongest match for this solution, especially when the project is centered on small oral liquid bottles and targeted anti-drip production.
Filling Range
30–150ml
Output
5000–12000 bph
Bottle Type
Straight tube bottle
Filling Accuracy
±1.5%

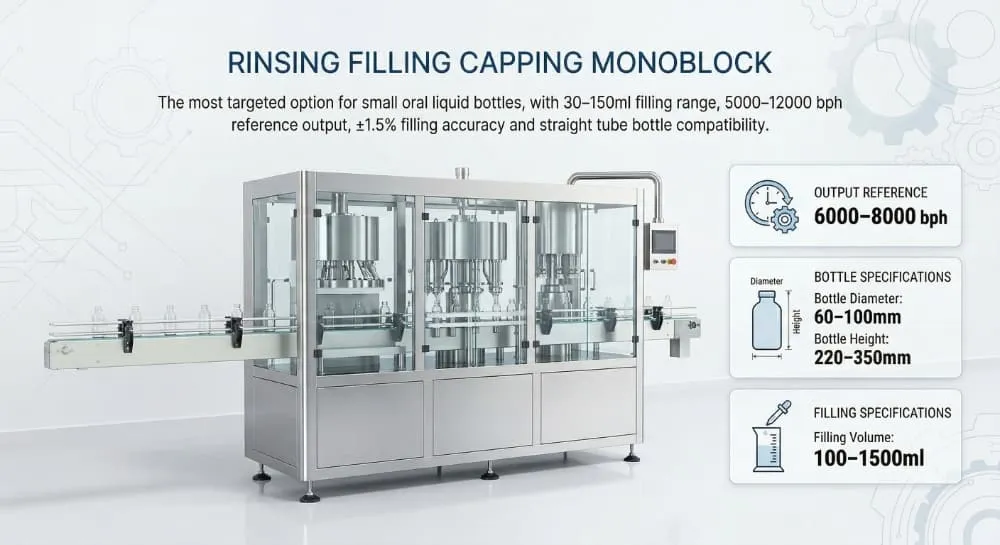

Rinsing Filling Capping Monoblock
A wider-range alternative for buyers who also need bottle rinsing and broader bottle-size compatibility within one combined upstream system.
Output Reference
6000–8000 bph
Bottle Diameter
60–100mm
Bottle Height
220–350mm
Filling Volume
100–1500ml

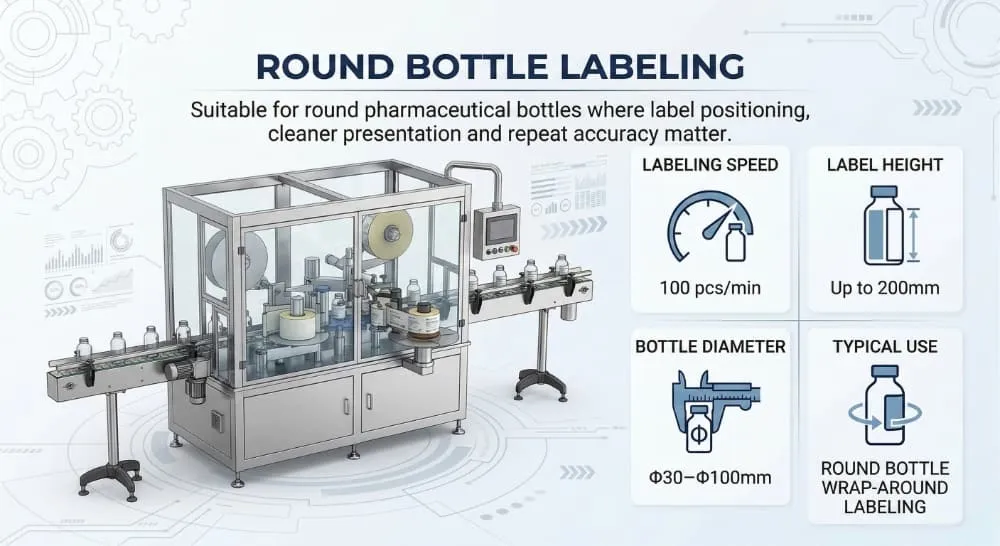

Round Bottle Labeling
Suitable for round pharmaceutical bottles where label positioning, cleaner presentation and repeat accuracy matter.
Labeling Speed
100 pcs/min
Label Height
Up to 200mm
Bottle Diameter
Φ30–Φ100mm
Typical Use
Round bottle wrap-around labeling

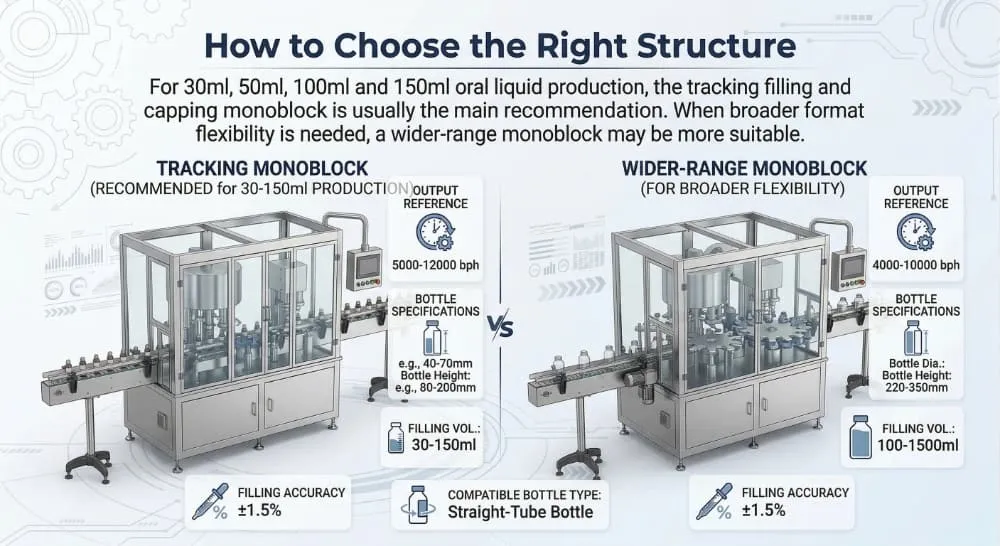

How Buyers Should Decide
If your project focuses on 30ml, 50ml, 100ml or 150ml oral liquid production, the targeted tracking monoblock is usually the main recommendation. If your project also requires broader format flexibility, a wider-range monoblock configuration may be more suitable.
Why This Line Works for Oral Liquid Projects
01
Targeted for Small-Dose Oral Liquids
Designed around 30ml, 50ml, 100ml and 150ml oral liquid applications instead of generic packaging claims.
02

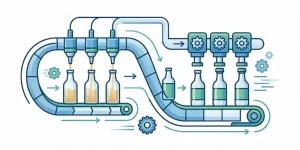

Track Filling for Higher Efficiency
Track-filling and fast multi-head capping support faster production and better line rhythm.
03

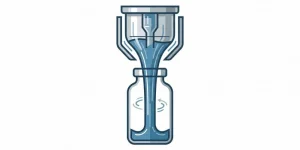

Anti-Splash Filling Structure
Large filling heads help create faster flow while reducing impact and splashing during filling.
04

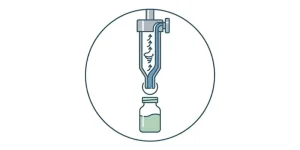

Anti-Drip Suction Return Design
Excess liquid is removed through a suction return program to reduce residual dripping after filling.
05

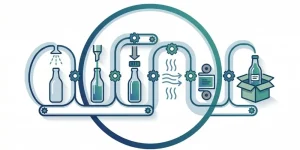

Full-Line Integration Logic
Rinsing, filling, sealing, drying, labeling and packing can be planned as one coordinated project.
06

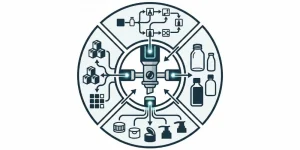

Custom Design Support
Configuration can be matched by bottle, cap, output target and plant layout rather than only by model number.
Line Options by Pharmaceutical Product Type
Oral Liquid Bottling Line
Best suited for small-dose oral liquid projects requiring targeted filling, anti-drip structure, and faster capping performance.
Syrup Bottling Line
Suitable for buyers who may require a broader bottle range, broader filling volume or a different upstream line arrangement.
General Liquid Medicine Bottling Line
Suitable for projects requiring a broader integration path from bottle cleaning to filling, capping, drying, labeling and final packing.
From Rinsing to Packing: Modules That Build the Complete Daily Chemical Line
MotivaPac’s value is not only one filler. It is the ability to combine standalone machines and downstream modules into a practical packaging solution.
Customization
Customized for Your Bottle, Cap and Factory Layout
Every pharmaceutical bottling project is different. The right configuration depends on bottle shape, bottle size, filling volume, closure type, target output and downstream packaging requirements.
MotivaPac can recommend a stand-alone machine or a complete line based on your bottle sample, drawing, product type and production objective.
Recommend the structure around your actual bottle type and dimensions.
Match sealing or capping style to your bottle and packaging target.
Scale the line for current capacity and later expansion needs.
Choose stand-alone supply or full-line arrangement based on workshop conditions.
Why MotivaPac
Why Choose MotivaPac
From rinsing and filling to capping, drying, labeling and packing.
Buyers can source a single machine or a more complete packaging system.
Focused on stable operation, practical engineering and project-based line configuration.
Suitable for bottle matching, line upgrades and layout-specific packaging projects.
Frequently Asked Questions
It is best positioned for oral liquids, syrups and other bottled liquid medicines within the supported bottle and filling range of the selected configuration.
Yes. The page is specifically anchored around those oral liquid volumes because that is the most relevant fit for the targeted tracking filling and capping monoblock.
The targeted oral liquid monoblock references 5000–12000 bottles per hour, while wider-range monoblock structures can fit different bottle and output requirements.
Yes. The line can include combined upstream structures and broader integration rather than only stand-alone machine selection.
Yes. The recommended page structure intentionally includes bottle drying, labeling, carton opening, cartoning and case sealing as part of the broader packaging solution.
No. This solution is focused on oral liquids and bottled pharmaceutical liquids rather than sterile injectable applications.
Please send your bottle photo or drawing, bottle diameter and height, filling volume, closure type, label requirement, target output and whether you need a stand-alone machine or a complete line.
Tell Us Your Bottle Type, Filling Volume and Required Output
Send us your bottle photo or drawing, filling volume, cap style and target capacity. Our team will recommend a suitable pharmaceutical bottling line configuration based on your application and layout requirements.
The more details you provide, the more accurately we can recommend the line structure, machine list and quotation direction.
