GFP / GZZ Series Gravity Filling Machine
Engineered for Water & Low-Viscosity Liquids. Stable Filling, Cleaner Bottle Presentation, Flexible Production.
Equal Liquid Level Filling: Negative-pressure low-vacuum filling helps reduce foaming and keeps the liquid level more consistent in every bottle.
Linear Gravity Flexibility: Wide filling range, compact structure, and digital adjustment make the GZZ series suitable for flexible production needs.
Bottle Protection: Elastic bottle support and bottle-mouth positioning help reduce bottle damage and keep filling heads aligned.
Easy Maintenance: Simple structure, convenient cleaning, and low maintenance cost help reduce downtime in daily production.
High-Performance Gravity Filling Technology
The GFP / GZZ Series Gravity Filling Machine is designed for water and other low-viscosity liquids that require stable operation, clean bottle presentation, and efficient daily production. This product family includes two practical filling solutions: the GFP Automatic Equal Liquid Level Filling Machine and the GZZ Linear Gravity Filling Machine. The GFP series adopts negative-pressure low-vacuum filling to reduce foaming during the filling process, while the GZZ series offers a large filling range, compact structure, and convenient digital control for flexible line applications.
It can be used as a standalone filling machine or integrated into a complete liquid packaging line. Qingzhou Tongda Packaging Machinery has more than 20 years of manufacturing experience and supplies complete line equipment covering rinsing, filling, capping, drying, labeling, carton packing, and water treatment systems. The company operates under a strict quality management system and its products have passed ISO 9001 and CE certification.
Automatic Equal Liquid Level Filling
The GFP series is built for manufacturers who care about bottle appearance, controlled foaming, and stable equal-level filling performance.
Negative-pressure low-vacuum filling is adopted to effectively reduce foaming during the filling process. At the same time, liquid flows down along the inner wall of the container, which helps suppress foam caused by liquid impact at the bottle bottom.
The Solution: Helps solve common filling problems in water-like liquids, such as unstable bottle presentation, excessive foam, and inconsistent visual liquid level.

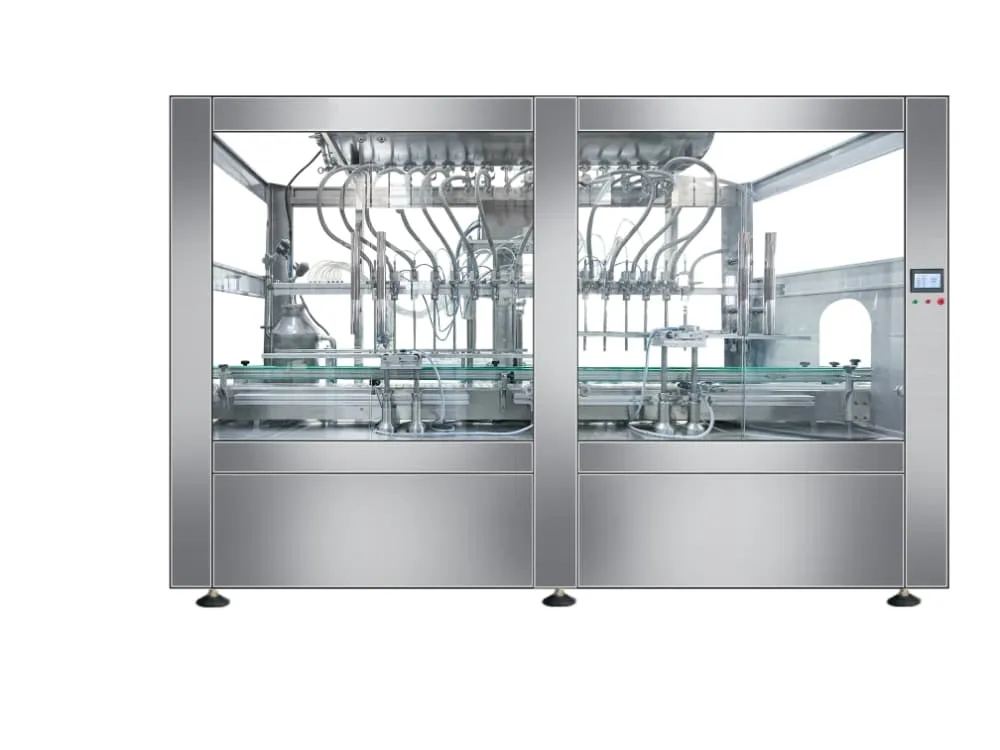

Linear Gravity Filling for Flexible Production
The GZZ series is a linear gravity filling solution designed for customers who need wider filling volume coverage and convenient production adjustment.
Its main features include a large filling range, high precision, compact machine body, and digital display control based on actual measurement correction. It is easy to operate, easy to clean, and convenient to maintain, while the maintenance cost remains low.
The Solution:Provides a practical filling platform for factories that need to handle different bottle sizes or filling volumes without moving to a more complex filling architecture.
Stable Filling Valve Structure
The GFP series uses a precise filling valve structure with fewer seals, delivering reliable and durable performance over long-term operation. Its valve structure is also simple, making disassembly and cleaning more convenient for daily maintenance.
The Solution:Reduces maintenance complexity while helping factories maintain stable production and product consistency.
Bottle Protection & Filling Accuracy
The GFP series uses a special elastic bottle support structure, allowing the bottle to be lifted more gently during filling and effectively reducing bottle damage. The GZZ series uses a bottle-mouth positioning device to keep the filling head aligned, while its ball screw diving and lifting mechanism ensures stable up-and-down movement.
The Solution: Improves line stability, lowers bottle loss, and helps maintain accurate filling position even in continuous production.
Foolproof Operation & Automation
Meticulously designed with advanced sensing and logic control systems, it ensures zero-fault operation and maximizes production efficiency.
SENSOR LOGIC
“No Bottle, No Fill” Safeguard
The GFP series will not fill bottles that are missing or have defective bottle mouths, helping improve final product quality.
AAAA
Digital Display Control
The GZZ series adjusts filling time through actual measurement correction and digital display control, making daily operation more convenient.
AAAA
Automatic Fluid Replenishment & Return
The GZZ series supports automatic fluid replenishment and fluid return without manual intervention, helping simplify production management.
AAAA
Unique Positioning Control System
The GZZ series features a unique positioning control system that helps prevent photoelectric miscounting.
Maximizing Your Production ROI
Every engineering detail of the GZH series is calculated to reduce your operating costs, minimize waste, and accelerate your return on investment.
Cleaner Filling Performance
The GFP series reduces foam through low-vacuum equal liquid level filling and inner-wall flow, helping improve final bottle appearance.
Lower Daily Maintenance Burden
Both series are designed for practical factory use. The GFP series is easy to disassemble and clean, while the GZZ series is easy to operate, clean, and maintain with relatively low maintenance cost.
Scalable Line Integration
Tongda supplies complete liquid packaging equipment, including bottle rinsing, filling, capping, drying, labeling, carton opening, cartoning, carton sealing, coding, and water treatment systems, allowing customers to expand from a single filler to a complete packaging line.
GFP / GZZ Series Technical Specifications
Specifically designed to balance operational flexibility with the demands of rigorous industrial environments. Listed below are the basic specifications for our standard GFP and GZZ series filling machines. Furthermore, we offer fully customized solutions engineered to perfectly align with your specific production capacity requirements and facility layout.
| Model | Filling Heads | Capacity (b/h) | Filling Accuracy | Power (kW) | Dimensions (mm) |
|---|---|---|---|---|---|
| GFP-12 | 12 | 3,000 | ±1.5 ml | 0.75 | 1100 × 1050 × 2100 |
| GFP-18 | 18 | 4,500 | ±1.5 ml | 0.75 | 1280 × 1180 × 2100 |
| GFP-24 | 24 | 6,000 | ±1.5 ml | 1.5 | 1700 × 1450 × 2100 |
| GFP-30 | 30 | 8,000 | ±1.5 ml | 1.5 | 1900 × 2000 × 2100 |
| GFP-36 | 36 | 10,000 | ±1.5 ml | 2.2 | 2300 × 2150 × 2100 |
| GFP-40 | 40 | 12,000 | ±1.5 ml | 2.2 | 2300 × 2300 × 2100 |
| GFP-48 | 48 | 14,000 | ±1.5 ml | 3.0 | 2600 × 2700 × 2100 |
| GFP-60 | 60 | 16,000 | ±1.5 ml | 3.0 | 3300 × 3300 × 2200 |
| GZZ Series Common Specifications | |||
| Model | Filling Heads | Capacity (b/h) | Dimensions (mm) |
|---|---|---|---|
| GZZ-4 | 4 | 400 - 800 | 1500 × 1100 × 2250 |
| GZZ-8 | 8 | 1,000 - 1,300 | 1800 × 1100 × 2250 |
| GZZ-12 | 12 | 1,500 - 2,000 | 1800 × 1100 × 2250 |
| GZZ-16 | 16 | 2,500 - 3,000 | 2350 × 1150 × 2250 |
| GZZ-18 | 18 | 3,500 - 4,000 | 2350 × 1150 × 2250 |
| GZZ-28 | 28 | 4,500 - 5,000 | 2350 × 1500 × 2250 |
| GZZ Series Common Specifications | |||
| Filling Range | 50 - 20000 ml (Customizable) | ||
| Filling Accuracy | ≤ 0.3% | ||
| Voltage | 50Hz / 60Hz, 3N-380V ±10% | ||
| Motor Power | 0.75 kW | ||
| Air Source Pressure | 0.5 - 0.8 MPa | ||
| Work Pressure | 0.6 - 0.7 MPa | ||
Versatile Applications: What Can It Fill?
Built for water and other low-viscosity liquids, the GFP / GZZ series is suitable for manufacturers that need stable filling, neat bottle presentation, and convenient daily maintenance. Backed by Tongda’s broader liquid packaging experience, the company’s equipment is widely used across beverage, condiment, edible oil, enzyme, liquid fertilizer, veterinary, vehicle fluid, and daily chemical sectors.
Water & Beverage
• Purified water
• Drinking water
• Beverage Base Liquids
• Other Free-Flowing Non-Carbonated Liquids
Value: GFP uses low-vacuum equal liquid level filling and inner-wall flow to help reduce foaming and improve final bottle presentation.
Condiments & Light Liquid Food
• Soy Sauce
• Vinegar
• Enzyme Liquids
• Other Low-Viscosity Food Liquids
Value: Stable filling structure, easy cleaning, and accurate bottle-mouth positioning help maintain production consistency.
Daily Chemical & Functional Liquids
• Glass Cleaner
• Vehicle Fluids
• Liquid Fertilizer
• Veterinary Liquids
Value: GZZ provides a large filling range, compact structure, and low maintenance cost for flexible production planning.
Universal Bottle Handling: Flexible Filling for Different Production Requirements
Unlike highly specialized filling structures designed for only one narrow format, the GFP / GZZ series is built for practical production flexibility. The GZZ series supports a 50-20000ml customizable filling range, while Tongda offers multiple model configurations for different output targets. This makes the machine family suitable for factories that need to balance bottle size variation, capacity planning, and future line expansion.
✔︎ Multiple Model Options
✔︎ Accurate Bottle-Mouth Positioning
✔︎ Flexible Filling Range
✔︎ Stable Lifting and Filling Action
Tailored to Your Needs: Integration & Custom Engineering
As an original manufacturer, Tongda can design, develop, and modify packaging machinery according to customer requirements. In addition to standalone filling machines, Tongda provides complete line solutions covering bottle rinsing, filling, capping, drying, labeling, carton opening, cartoning, carton sealing, coding, and water treatment systems.
🌡️
Complete Filling Line Integration
Suitable for integration with bottle rinsing, capping, drying, labeling, and end-of-line packing equipment to build a complete liquid packaging solution.
💥
Customized Machine Planning
Tongda can design and modify packaging machinery based on bottle type, filling volume, target output, and plant layout requirements.
🧼
Capacity-Based Model Selection
From smaller-capacity linear filling to higher-output equal liquid level filling, Tongda offers multiple GFP and GZZ models for different production scales.
Compact Design & Easy Integration
The GZZ series features a compact structure and small machine body, making it easier to arrange within practical production layouts. Tongda’s broader equipment range also allows the filling machine to be connected with upstream and downstream systems as production expands.
Frequently Asked Questions About the GFP / GZZ Series
Expert answers to your technical and operational queries.
The GFP series is an automatic equal liquid level filling machine using negative-pressure low-vacuum filling, while the GZZ series is a linear gravity filling machine designed for a larger filling range, compact structure, digital display control, and convenient maintenance.
Yes. This page is positioned for water and low-viscosity liquids. The GFP series is particularly suitable where foaming control and liquid-level appearance matter, while GZZ is suitable where flexible volume range and simple linear operation are priorities.
Yes. The GZZ series supports a 50-20000ml customizable filling range, making it suitable for different production plans and bottle sizes.
Yes. The GFP filling valve has a simple structure that is easy to disassemble and clean, while the GZZ series is designed for easy operation, easy cleaning, convenient maintenance, and low maintenance cost.
Yes. It can design, develop, and modify packaging machinery according to customer requirements.
Yes. We have passed ISO 9001 quality system certification and CE certification, and that its machinery has been exported to the United States, Canada, the United Kingdom, Germany, Sweden, Australia, Peru, Chile, the UAE, and Indonesia, among other markets.
