GDP SERIES
CE CERTIFIED
ISO 9001 CERTIFIED

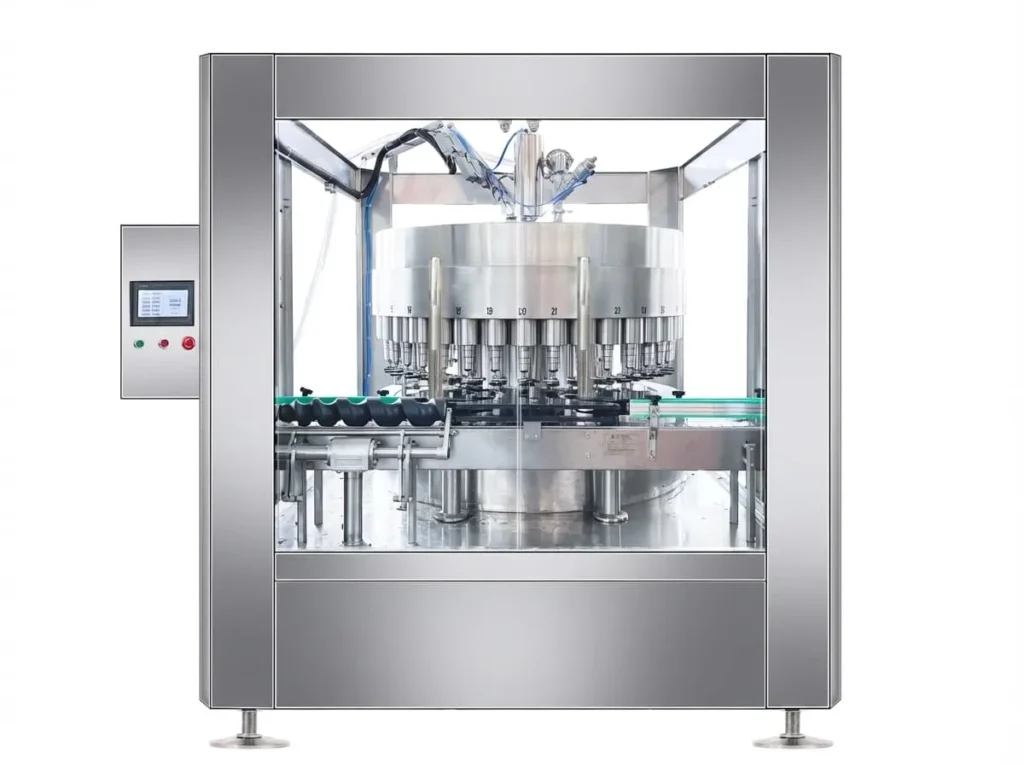

GDP Series Automatic Electronic Quantitative Filling Machine
Absolute Precision. Zero Bubbles. Ultimate Liquid Level Control for Premium Beverages and Spirits (3,000 – 8,000 BPH).
PLC Trial Operation Compensation: Tests the liquid level in the electronic valve throughout the entire process.
Bubble-Free Technology: A closed liquid flow channel completely avoids gas and liquid convection.
Gentle & Smooth Filling: Damped flow ports and reverse blocking reduce the liquid impact force.
Zero Breakage: An elastic bottle holding structure ensures soft container handling.
High-Performance Electronic Quantitative Filling Technology
The GDP Series Automatic Electronic Quantitative Filling Machine is designed for manufacturers who need fast, accurate, and stable quantitative filling for bottled liquid products. Precisely made from high-quality stainless steel, the machine uses stainless steel electronic valve components processed by CNC equipment to deliver reliable performance in continuous production.
With fast filling speed, quick volume adjustment, and compatibility with multiple bottle types and capacities, the GDP series is an ideal solution for liquid producers handling diverse SKUs. It can be used as a standalone filling machine or integrated into a complete bottling line, supported by Tongda’s CE-certified and ISO 9001-certified manufacturing standards.
Precision-Machined Stainless Steel Valve Components
Made of high-quality stainless steel, the GDP series uses special electronic valve parts that are also manufactured in stainless steel and fully processed by CNC machines. This ensures consistent machining quality, dependable structure, and long-term durability for demanding filling environments.
The Solution: Delivers stronger corrosion resistance, better component consistency, and more reliable long-term operation for daily production.
High-Precision Valve Body Engineering
The valve body parts are all processed by CNC machines, while key components are treated with high wear-resistant technology. The valve stem moves flexibly and accurately, enabling accurate and efficient filling. At the same time, the machine maintains a simple mechanical structure with stable and reliable performance.
The Solution: Solves common problems such as unstable fill accuracy, component wear, and inconsistent production efficiency.
Seconds-Level Volume Changeover
The GDP series is built for fast filling speed, and the filling volume can be changed within a few seconds. This makes the machine especially suitable for multi-variety production environments where products, bottle sizes, or filling volumes change frequently.
The Solution: Helps factories reduce downtime between SKUs, improve operating efficiency, and respond faster to mixed-order production.
Wide-Range Filling for Multi-Bottle Production
The GDP series offers a wide filling range and is suitable for multiple bottle types and multiple capacities. With broad bottle compatibility and flexible model selection, it supports manufacturers that need one machine family for diversified liquid bottling.
The Solution: Gives one filling solution the flexibility to cover different bottle specifications, different fill volumes, and different production plans.
Stable Operation & Practical Production Design
The GDP series is designed not only for filling accuracy, but also for stable day-to-day operation. Its simple mechanical structure, flexible valve movement, and fast product changeover make it a practical solution for continuous liquid bottling production.
AAAA
Simple Mechanical Structure
The machine features a simple mechanical structure that supports stable and reliable performance. This practical design helps manufacturers keep production efficient without unnecessary operating complexity.
AAA
Flexible and Accurate Valve Movement
The valve stem moves flexibly and accurately during operation, helping maintain precise quantitative filling and smoother overall machine performance across continuous production cycles.
AAAA
Built for Multi-Variety Filling
With fast filling speed and seconds-level filling volume adjustment, the GDP series is especially suitable for factories producing multiple liquid products, multiple bottle sizes, or multiple capacity formats on one line.
Maximizing Your Production ROI
Every core feature of the GDP series is designed to reduce adjustment time, improve filling stability, and support flexible production planning for long-term efficiency.
Minimized Changeover Time
When filling volume can be changed in just a few seconds, operators spend less time on machine adjustment and more time on actual production.
Accurate Quantitative Filling
CNC-machined valve components, wear-resistant key parts, and flexible valve action help the machine maintain precise and efficient filling across repeated production cycles.
Scalable Series Architecture
From GDP-12 to GDP-96, the GDP series offers multiple filling-head configurations, allowing manufacturers to choose the right capacity for current production while keeping room for future expansion.
GDP Series Technical Specifications
Engineered for flexible liquid bottling projects. Below are the baseline parameters for the standard GDP series electronic quantitative filling machines. Model selection can be matched to your bottle size, filling volume, and hourly output target.
| Specification | GDP-12 | GDP-18 | GDP-24 | GDP-32 | GDP-48 | GDP-72 | GDP-96 |
|---|---|---|---|---|---|---|---|
| Filling Heads | 12 | 18 | 24 | 32 | 48 | 72 | 96 |
| Applicable Bottle Height | 120-300 mm | ||||||
| Applicable Bottle Diameter | Φ50-100 mm | ||||||
| Production Capacity | 4000 b/h | 6500 b/h | 8000 b/h | 10000 b/h | 12000 b/h | 18000 b/h | 24000 b/h |
| Filling Precision | ±1.5 ml | ||||||
| Filling Range | 50-5000 ml | ||||||
| Motor Power | 0.75 kW | 0.75 kW | 1.5 kW | 1.9 kW | 3.0 kW | 4.5 kW | 6.0 kW |
| Machine Dimensions | 1250×1200×2200 mm | 1350×1350×2200 mm | 1500×1700×2200 mm | 2300×2100×2600 mm | 2960×3450×2600 mm | 3510×4000×2600 mm | 4200×5000×2600 mm |
Versatile Applications: What Can It Fill?
One machine for diverse liquid bottling needs. With accurate electronic quantitative filling, fast volume changeover, and support for multiple bottle types and capacities, the GDP series is suitable for a wide range of industries.
Liquor & Beverage
• Wine / Fruit Wine
• Beverage Liquids
• Other Bottled Liquid Products
Value: Fast volume adjustment and stable quantitative filling help liquor and beverage producers handle different bottle sizes and production batches more efficiently.
Food & Functional Liquids
• Edible Oil
• Enzyme Liquids
• Oral Liquids
Value: Accurate filling and broad bottle adaptability make the GDP series a practical solution for food and functional liquid products with multiple capacity requirements.
Daily Chemical & Industrial Liquids
• Veterinary Drugs
• Vehicle Urea
• Glass Water / Washing Products
Value: High-torque servo motors easily push highly viscous industrial lubricants without stalling or losing volume accuracy.
Universal Bottle Handling for Multi-Bottle Production
The GDP series is built for manufacturers who need one filling solution for multiple bottle specifications and multiple capacities.
✔︎ Multiple Bottle Types
✔︎ Multiple Capacities
✔︎ Bottle Height: 120-300 mm
✔︎ Bottle Diameter: Φ50-100 mm
AAAA
AAAA
AAAA
AAAA
Tailored to Your Needs: GDP Optional Configurations
As an original manufacturer, Tongda offers matching solutions for the GDP series based on your production scale, bottle specifications, and complete line requirements.
🌡️
Different Output Targets
Filling Head and Capacity Matching
From GDP-12 to GDP-96, the GDP series offers multiple filling-head configurations. This allows buyers to select the right model according to current hourly output requirements and future production growth.
💥
Complete Bottling Projects
Standalone Machine or Integrated Line
The GDP series can be used as a standalone filling machine or integrated into a complete liquid packaging line. Tongda also supplies bottle rinsing, sealing, drying, labeling, carton opening, cartoning, carton sealing, coding, and water treatment equipment.
🧼
Special Bottles and Production Requirements
Custom Design, Development, and Modification
Tongda can design, develop, and modify packaging machinery according to customer requirements. This is ideal for projects involving special bottle specifications, customized line layouts, or specific production goals.
Compact Design & Easy Integration
The GDP series is available in multiple machine sizes, making it easier for factories to plan installation according to production capacity, workshop space, and line layout.
- Machine Dimensions (L x W x H): From 1250×1200×2200 mm to 4200×5000×2600 mm.
- Applicable Bottle Specifications: Bottle height 120-300 mm; bottle diameter Φ50-100 mm.
- Line Integration: Available as a standalone machine or as part of a complete liquid packaging line.
Frequently Asked Questions About the GDP Series
Expert answers to your technical and purchasing questions.
The GDP series is designed for fast adjustment. Filling volume changes can be completed in just a few seconds, making the machine highly suitable for multiple products and frequent specification changes.
The machine is suitable for bottle heights from 120 mm to 300 mm and bottle diameters from Φ50 mm to Φ100 mm. It is also designed for multiple bottle types and multiple capacity requirements.
The GDP series supports a filling range from 50 ml to 5000 ml, depending on the selected model and production requirement.
Model selection should be based on your bottle size, target filling volume, and required hourly output. The GDP series ranges from 4000 b/h to 24000 b/h, giving you flexible options for both current production and future expansion.
Yes. Tongda provides complete liquid packaging solutions, including rinsing, filling, sealing, drying, labeling, cartoning, carton sealing, coding, and water treatment equipment. The company also supports custom machine design, development, and modification based on customer requirements.
Yes. Tongda has more than 20 years of manufacturing experience, and its products are sold across China and exported to markets including the United States, Canada, the United Kingdom, Germany, Sweden, Australia, Peru, Chile, the UAE, and Indonesia. The company operates under ISO 9001 quality management standards, and its products are CE certified.
Ready to Upgrade Your Bottling Line with Absolute Precision?
Don’t let outdated mechanical valves cost you in product give-away and downtime. Contact InnoTonda’s engineering team today for a technical consultation on the GDP Series Electronic Quantitative Filling Machine.
