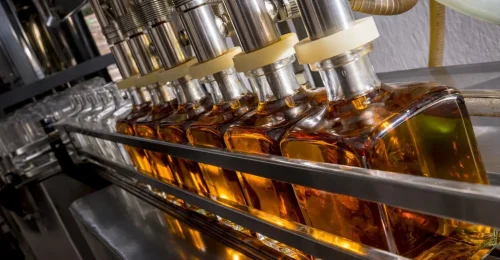

Alcohol & Spirits Bottling Line Solutions
Complete bottling solutions for baijiu, liquor, fruit wine and other non-carbonated alcohol products.
MotivaPac provides complete alcohol and spirits bottling line solutions for glass bottles of different sizes and closures. Based on your product, bottle shape, cap type and target output, we can configure rinsing, filling, capping or corking, drying, labeling, coding and end-of-line carton packing into one coordinated production line.
Wide product scope
Suitable for baijiu, liquor, fruit wine and other non-carbonated alcohol products.
Flexible closure options
Support for screw cap and corking configurations according to your packaging format.
Multiple filling solutions
Equal-level filling and electronic quantitative filling available for different production goals.
Full line integration
Layout design, machine matching, labeling, coding and end-of-line packing support.
Bottle Rinsing, Filling, Capping or Corking, Labeling and Carton Packing

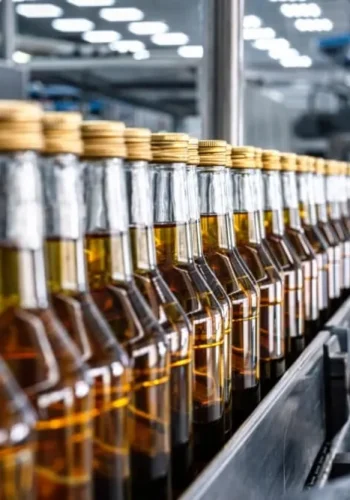

A typical alcohol and spirits bottling line combines bottle infeed, rinsing, filling, closure application, drying, labeling, coding and end-of-line packing into one stable production workflow.

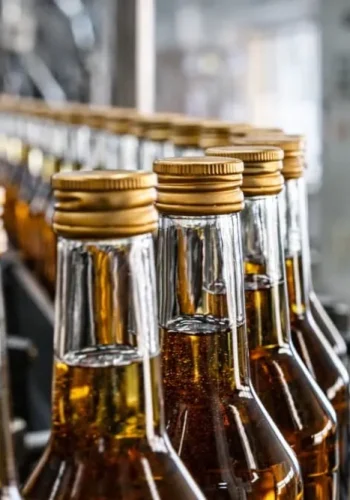

Bottle Washing Scenes Aligned with Real Production
Custom alcohol and spirits bottling line solutions for baijiu, liquor, fruit wine and other non-carbonated alcohol products. Support bottle rinsing, filling, capping or corking, labeling, coding and end-of-line packing.
Glass Bottles
Baijiu / Liquor / Fruit Wine
Rinsing to Packing
Screw Cap / Corking
Why This Solution Works for Spirits Producers
The optimized version adds production-related imagery to strengthen the page while keeping the original machine copy as the main decision content.
A
Built for non-carbonated liquid filling applications
B
Compatible with glass bottles in complete line configurations
c
Available for screw cap and corking projects
D
Flexible line design for multiple bottle sizes and output targets
E
Can be supplied as a full line or as matched individual machines
Suitable for Baijiu, Liquor, Fruit Wine and Other Non-Carbonated Alcohol Products
This solution is designed for non-carbonated alcohol products that require stable bottle handling, precise filling, reliable closure application and neat final packaging. It is especially suitable for producers looking for a coordinated line from rinsing to end-of-line packing.
Typical Products
- Baijiu
- Liquor
- Wine
- Fruit wine
- Spirits
- Fruit wine
- Selected premium liquor products
- Other non-carbonated alcohol products
Typical Packaging Options
- Glass bottles
- Round bottles
- Selected square or shaped bottles
- Screw cap bottles
- Corked bottles
- Front and back label applications
- Carton-packed final products
Typical Alcohol & Spirits Bottling Process
A complete spirits bottling line usually includes bottle infeed, bottle rinsing, filling, closure application, drying, labeling, coding and carton packing. The process can be configured according to bottle size, closure type, filling method and final packing needs.
01
Bottle Feeding
Bottles are guided into the line smoothly and continuously to ensure stable transfer into the rinsing and filling sections.
02
Bottle Rinsing
Bottles are rinsed before filling to improve hygiene and prepare the package for the next stage of production.
03
Filling
The filling system is selected according to product characteristics, bottle format and output target.
04
Capping / Corking
The line can be configured for pilfer-proof aluminum caps or corking applications based on packaging needs.
05
Drying
Bottle surface drying prepares the package for accurate labeling and coding.
06
Labeling
Labels are applied according to bottle shape, brand style and front/back label requirements.
07
Coding
Production date, batch code or traceability code can be added according to project requirements.
08
Carton Opening
Cartons are opened automatically to prepare for end-of-line loading and packing.
09
Carton Packing
Finished bottles are loaded into cartons in a stable and efficient way.
10
Carton Sealing & Palletizing
Cartons are sealed and can be prepared for palletizing and outbound logistics.
Choose the Right Line by Closure Type and Filling Method
Closure type and filling method are usually the most important factors when selecting the right spirits bottling line architecture.

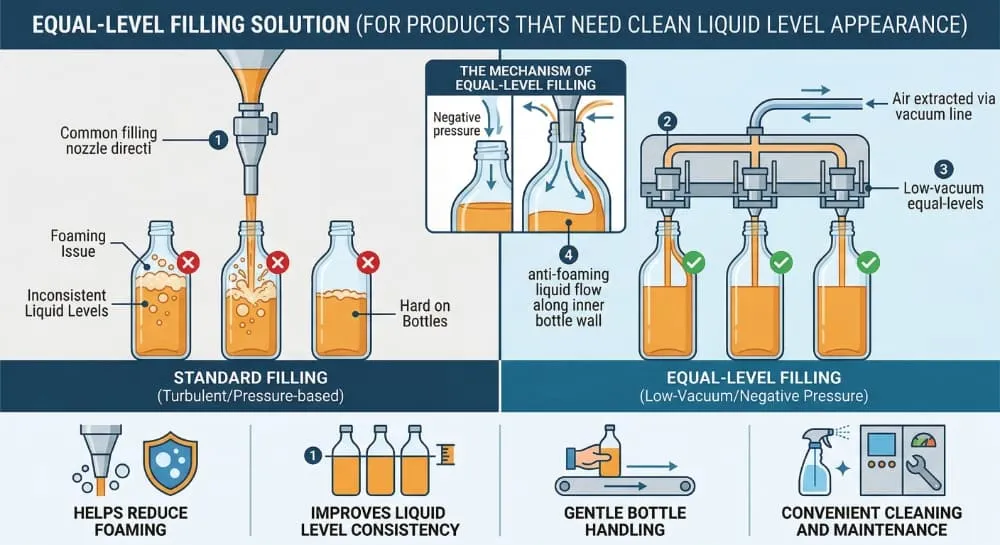

Equal-Level Filling Solution
For Products That Need Clean Liquid Level Appearance
Equal-level filling is a strong option when appearance consistency and anti-foaming performance matter. This filling method uses negative pressure low-vacuum filling and lets liquid flow along the inner bottle wall, which helps reduce foaming and improve final presentation.
- Helps reduce foaming
- Improves liquid level consistency
- Gentle bottle handling
- Convenient cleaning and maintenance
Electronic Quantitative Filling Solution
For Multi-Size Production and Fast Changeover
Electronic quantitative filling is recommended for producers that run multiple bottle sizes or filling volumes and require fast adjustment. It offers high precision, stable performance and fast changeover for different product specifications.
- High filling precision
- Fast capacity adjustment
- Suitable for multiple bottle sizes
- Good choice for product changeovers

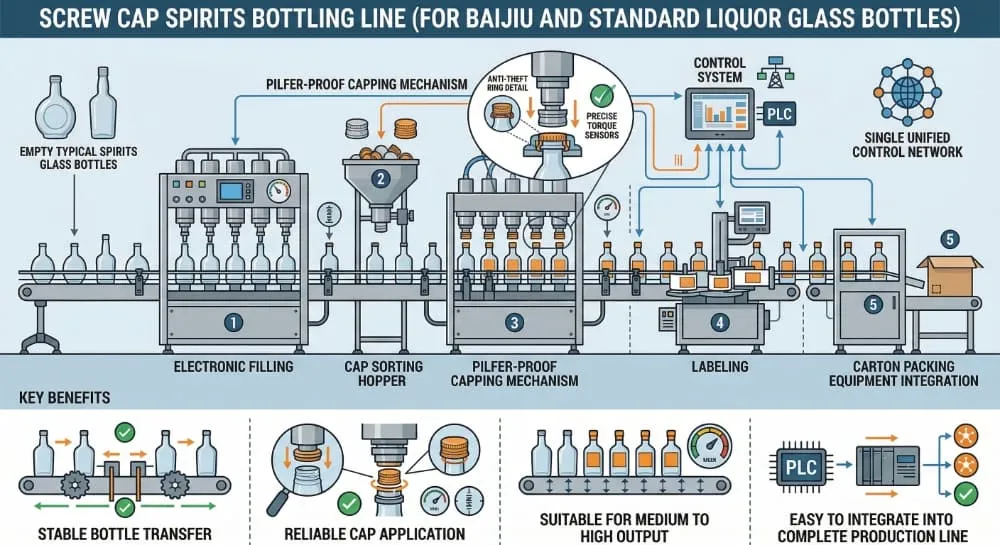

Screw Cap Spirits Bottling Line
For Baijiu and Standard Liquor Glass Bottles
This solution is recommended for spirits packed in standard glass bottles with pilfer-proof aluminum caps or similar screw cap formats. It is suitable for producers that need reliable output, stable cap application and convenient integration with labeling and carton packing equipment.
- Stable bottle transfer
- Reliable cap application
- Suitable for medium to high output projects
- Easy to integrate into a complete production line

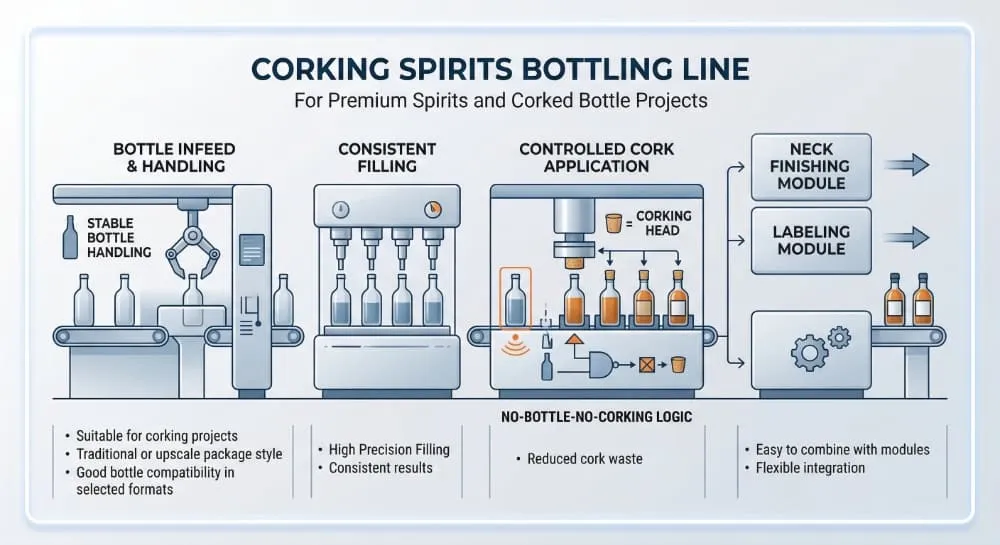

Corking Spirits Bottling Line
For Premium Spirits and Corked Bottle Projects
This solution is suitable for spirits packed with cork closures, especially for premium product lines that require a more traditional or upscale package style. It is recommended for producers that need stable bottle handling, consistent filling and controlled cork application.
- Suitable for corking projects
- Good bottle compatibility in selected formats
- Reduced cork waste with no-bottle-no-corking logic
- Easy to combine with neck finishing and labeling modules
Recommended Alcohol & Spirits Bottling Line Configurations
The following configurations provide a practical starting point for matching bottle style, closure type and production requirements.
Configuration 01

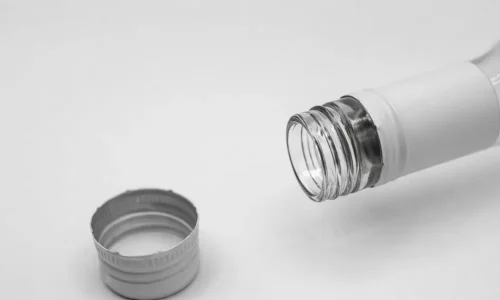

Standard Baijiu Screw Cap Line
Best For: Baijiu and liquor packed in standard glass bottles with pilfer-proof aluminum caps.
Recommended Line Includes
- Bottle feeding conveyor
- Automatic bottle rinsing machine
- Filling machine
- Pilfer-proof cap capping machine
- Bottle drying machine
- Sticker labeling machine
- Coding machine
- Carton opening machine
- Carton packing machine
- Carton sealing machine
This is the most practical configuration for standard baijiu and liquor bottling projects that require a complete line from empty bottle handling to carton packing.
Configuration 02

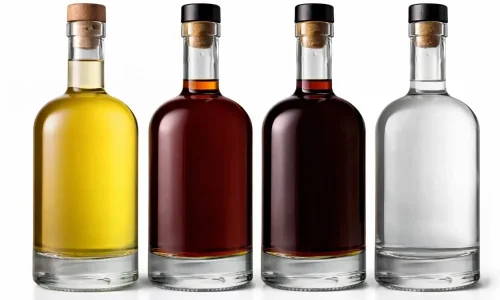

Premium Corked Spirits Line
Best For: Premium spirits using cork closure and high-end bottle presentation.
Recommended Line Includes
- Bottle feeding conveyor
- Bottle rinsing machine
- Filling machine
- Corking machine
- Optional neck finishing or capsule shrinking equipment
- Labeling machine
- Coding machine
- End-of-line carton packing equipment
This configuration is designed for premium spirits projects that need precise filling, controlled corking and a cleaner final presentation.
Configuration 03

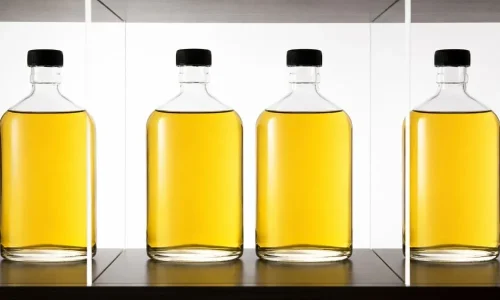

Equal-Level Spirits Filling Line
Best For: Products that require reduced foaming and better visible liquid level consistency.
Recommended Line Includes
- Bottle infeed
- Bottle rinsing machine
- Equal-level filling machine
- Capping machine
- Bottle dryer
- Labeling machine
- Coding machine
- Packing section
This solution is ideal for producers who prioritize filling appearance, stable filling behavior and reduced foaming in the bottle.
Key Machines in the Alcohol & Spirits Bottling Line
These core modules determine line stability, filling quality, closure performance, labeling accuracy and end-of-line efficiency.
Machine 01
Bottle Rinsing Machine
The bottle rinsing machine is used before filling to clean the inside of bottles and prepare them for the next process. It helps improve hygiene, reduce contamination risk and support stable downstream filling performance.
Machine 02
Filling Machine
The filling machine is the core of the line. Depending on your product and packaging target, the line can be configured with equal-level filling or electronic quantitative filling. Equal-level filling is suitable for anti-foaming and visible level consistency, while electronic quantitative filling is suitable for high precision and faster format switching.
Machine 03
Pilfer-Proof Aluminum Cap Capping Machine
This capping solution is used for liquor bottles with pilfer-proof aluminum caps. It is suitable for standard spirits bottling lines that need stable cap application, secure sealing and good production continuity.
Machine 04
Corking Machine
The corking machine is designed for premium spirits projects using cork closures. It works with suitable bottle formats and can be integrated into a complete line with filling, labeling and end-of-line packaging.
Machine 05
Bottle Drying Machine
Bottle drying helps remove surface moisture after filling and closure application, creating better conditions for labeling and coding.
Machine 06
Labeling Machine
The labeling system is selected according to bottle shape and label format. For spirits projects, double-side sticker labeling is commonly used for front and back labels.
Machine 07
Corking Machine
The corking machine is designed for premium spirits projects using cork closures. It works with suitable bottle formats and can be integrated into a complete line with filling, labeling and end-of-line packaging.
Machine 08
Custom Machine
This is the custom machine according to customer’s requirement.
Technical Range and Customization Options
Each alcohol bottling project is different. Final machine configuration depends on bottle size, closure type, filling method, labeling requirements and expected output. Below is a practical overview for initial project evaluation.
Bottle Type
Glass bottles, and selected porcelain or ceramic bottles in suitable configurations.
Bottle Diameter
Typically 60-100 mm for monoblock screw cap and corking solutions.
Bottle Height
Typically 220-350 mm for monoblock screw cap and corking solutions.
Filling Volume
Typically 100-1500 ml for monoblock configurations, with broader ranges available by machine type.
| Reference Model |
Application | Main Range | Output | Notes |
|---|---|---|---|---|
| QGX / QGF 24-24-8 | Screw cap monoblock | Bottle diameter 60-100 mm; bottle height 220-350 mm; filling volume 100-1500 ml | 6000 bph | Suitable for standard liquor bottle lines with aluminum cap application. |
| QGD 24-24-6 | Corking monoblock | Bottle diameter 60-100 mm; bottle height 220-350 mm; filling volume 100-1500 ml | 5000 bph | Suitable for premium spirits corking projects. |
| GFP Series | Equal-level filling machine | Low-vacuum filling, anti-foaming support | Up to 16000 bph across the series | Useful when visible liquid level consistency matters. |
| GDP Series | Electronic quantitative filling | Filling range 50-1500 ml | Based on selected model | Recommended for multi-size production and faster changeover. |
Customization Note
The final proposal should always be based on your actual bottle sample, cap or cork sample, label format, filling volume and target output.
Why MotivaPac
Why Choose MotivaPac for Alcohol & Spirits Bottling Projects
MotivaPac is a professional liquid packaging machinery supplier focused on complete line integration. The solution scope covers bottle rinsing, filling, sealing, drying, labeling, carton handling, coding and water treatment for a wide range of liquid products.
- More than 20 years of industry experience
- Complete line capability, not only single machines
- Experience in alcohol, liquor and other liquid filling projects
- Support for machine design, integration and line modification
- Quality management system and CE certification
- Export experience in multiple overseas markets
Years of experience
Line integration support
Custom project matching
Project Delivery Support
For alcohol and spirits projects, the right line is not selected by output alone. Bottle format, closure type, liquid behavior, label position and packing method all matter. MotivaPac can support the project from technical evaluation to final line configuration.
- Project consultation and sample review
- Technical matching and line proposal
- Layout planning for workshop fit
- Machine manufacturing and line integration
- Installation and commissioning support
- After-sales service and spare parts support
Service Process
From Bottle Sample Review to Line Delivery
For alcohol and spirits bottling projects, the most reliable way to configure a line is to validate the real bottle, cap or cork, filling volume, label format and output target before final recommendation.
01
Project Consultation
Tell us your product type, bottle size, cap type, target output and packing requirement.
02
Sample Evaluation
Send your bottle, cap or cork and label samples for solution matching.
03
Line Proposal
We recommend the suitable filling method, closure solution and line structure.
04
Layout Planning
We prepare a practical equipment layout according to your workshop and production flow.
05
Machine Manufacturing
The line is produced according to the confirmed technical solution.
06
Installation & Commissioning
We support setup, adjustment and startup for smoother project delivery.
07
After-Sales Service
Spare parts, technical support and maintenance guidance are available after delivery.
08
Line Optimization
Future line expansion and modification can be supported according to new bottle or product needs.
Common Questions About Alcohol & Spirits Bottling Lines
Below are common questions raised during early-stage project evaluation.
This solution is suitable for baijiu, liquor, fruit wine and other non-carbonated alcohol products.
Yes. The line can be configured either for pilfer-proof screw cap application or for corking, depending on your packaging format.
If you care more about reducing foaming and improving visible liquid level consistency, equal-level filling is a good option. If you need high filling precision and faster volume changeover across multiple products, electronic quantitative filling is usually the better choice.
Typical monoblock solutions support bottle diameter 60-100 mm, bottle height 220-350 mm and filling volume 100-1500 ml. Final compatibility should be confirmed according to your actual bottle sample.
MotivaPac can provide both complete line solutions and individual machines. The product offering can cover process capability from bottle rinsing to final carton packing.
Yes. The line can include bottle drying, sticker labeling, coding, carton opening, carton packing, carton sealing and palletizing according to project needs.
Yes. The final line proposal should be based on your bottle sample, closure sample, filling volume, label requirement and target output.
